Proceq Schmidt Concrete Hardness Tester

Pine Item #54265

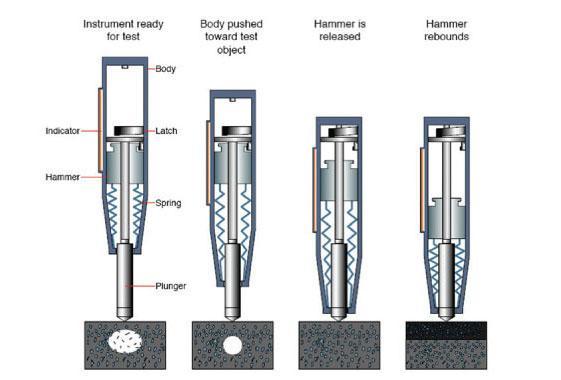

Proceq Schmidt ® concrete testers are used for the non-destructive measurement of the concrete/mortar compressive strength and the control of the uniform concrete quality (in-situ concrete and prefabricated structures) as well as for detecting weak spots. The compressive strength (fc) is established by measuring the hardness (rebound value R) of the concrete surface and with the conversion curves. ORIGINAL SCHMIDT ® Concrete test hammers with various impact energies can be used depending on the form and sizes of the concrete structures (lower impact energy for thin and/or weak components).

Features:

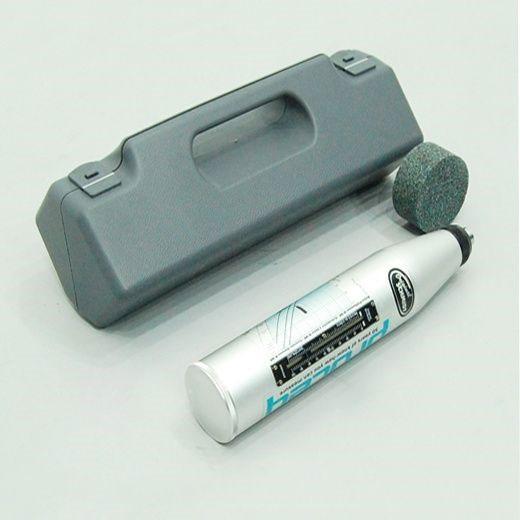

Type N Original Schmidt: Rebound values are read from a scale for subsequent calculation of the mean. Compressive strength values can be read from a conversion diagram

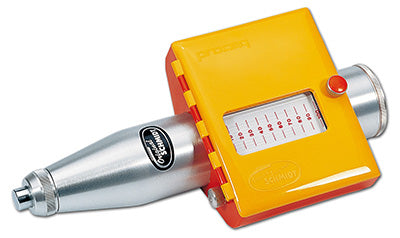

Type NR Original Schmidt: Rebound values are recorded as a bar chart on a paper strip which has a capacity for 4’000 test impacts

Applications:

Type N Original Schmidt: Rebound values are read from a scale for subsequent calculation of the mean. Compressive strength values can be read from a conversion diagram

Type NR Original Schmidt: Rebound values are recorded as a bar chart on a paper strip which has a capacity for 4’000 test impacts

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

TYPE NMeasuring range:
TYPE NRMeasuring range:

Dimension

USMetric
TYPE N5.5 x 4.5\" x 12.75\"\"140 x 114 x 324 mm
TYPE NR12.75 x 11.75\" x 4\"\"325 x 295 x 105 mm

Weight

USMetric
TYPE N3.5 lbs (Ship 4lbs)1.6 kg (Ship 1.8 kg)
TYPE NR6 lbs (Ship 7lbs)2.7 kg (Ship 3.2 kg)
