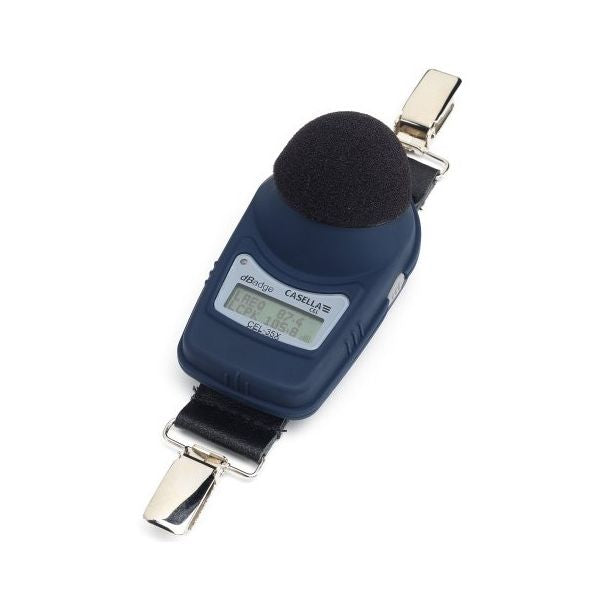

Casella CEL-350 dBadge Personal Noise Dosimeter
Casella CEL-350 dBadge Personal Noise Dosimeter
Casella CEL

Casella CEL-350 dBadge Personal Noise Dosimeter

Pine Item #54502

The CEL-350 dBadge from Casella is available to hire and is ideal for personal noise exposure measurements in the workplace. Lightweight and unobtrusive CEL-350 dBadge personal noise dosimeter has the added benefit of requiring no cables or additional equipment to operate. All necessary workplace noise parameters are measured and can be internally stored for subsequent download to PC with the supplied software. Both intrinsically safe (IS) and non-IS versions of this dosimeter are available to hire.

Features:

No cables to damage or get in the way

Measures and logs all workplace noise parameters

28 hour battery life fully charges in 90 minutes

Integrated display and visual exposure alarm

Simple auto-calibration function

Comprehensive software package

Pro mode displays dose and projected dose values

Run duration timers

Intrinsically safe models available for use in hazardous atmospheres

Simultaneous C and A weighted measurements on the dBadge Plus

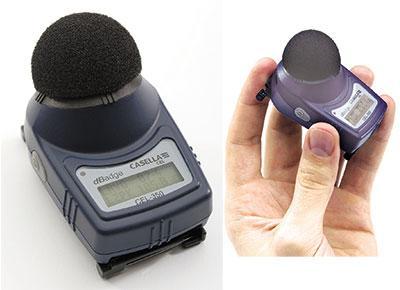

Compact rugged (rubber overmoulded) design weighs only 71g

Applications:

Measuring Personal Noise Exposure

Assessing and Monitoring Noise in the Workplace

Ensuring Compliance with Workplace Noise Regulations

Measurements According to ISO9612: 2009

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications

Technical Specifications

Measured Parameters:NULL
ISO:LAeq LCpeak d Pa2 Hours Projected 5dose (Q=3)
OSHA:LAevg (Q=5) LZpeak LASmax %dose (Q=5) TWA
General:LAFmax LAFmin LASmin
Time History:LAeq LZpeak LCpeak Laavg (Q=5)
Storage:All parameters simultaneously
Linear Operating Range:65.0 to 140.3dB RMS
Peak Measurement Range:95.0 to 143.3dB Peak
Frequency Weightings RMS:A
Frequency Weightings Peak:C A Z (linear)
Time Weightings:Slow Fast and Impulse
Amplitude Weightings:Q=3 & Q=5
Memory Capacity:64kB (180 hours of measurement)
Default Modes:ISO or OSHA
Calibration Information:Calibration dates times and levels
Display:Graphic LCD
Output:Infra-red download cable to dB35 software
Power Supply:Internal NiMH cells
Battery Life:32 hours run capacity
Operational Temperature:0 to 40ºC
NULLNULL

Dimension

USMetric
Dimensions2.8 x 1.8 x 2.0in72 x 47 x 52mm

Weight

USMetric
Dimensions2.8 x 1.8 x 2.0in72 x 47 x 52mm
