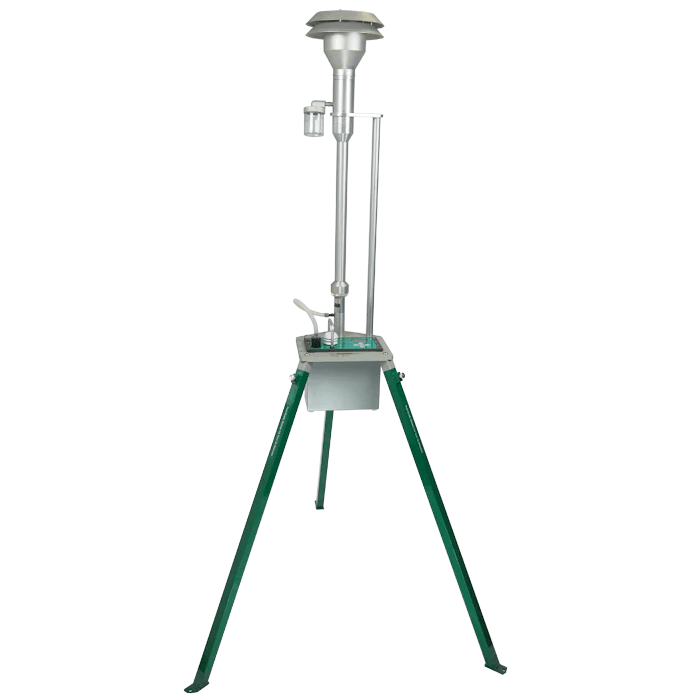

BGI PQ100 Sampler
PQ100 Portable Ambient Particulate Sampler provides EPA Reference Method Data for PM10. Can be configured for TSP and PM2.5.
The PQ100 - FRM Sampler meets and exceeds the US EPA requirements for manual ambient particulate sampling.
Operates up to 30 hours from its internal 12Volt DC Battery. AC power outages do not effect the sample event true continuous sampling with no interruptions.
Can be configured for PM10 PM 4.0 PM 2.5. PM 1 and TSP for Low Ultra high Altitude
Portable and only EPA designated sampler with solar augmentation approval
US EPA designated for PM-10
Volumetric Flow Control using ambient temperature and barometric pressure compensated mass flow sensor
High Altitude Sampling
Remote Site Monitoring
Fence Line Monitoring
|Flow Rate Selections||1.0 - 25.0 lpm in 0.1 lpm increments|
|Flow Rate Accuracy||0.005|
|Flow Rate Precision||0.02|
|Power Source||12V 12Ah Sealed Lead Acid Battery or 120VAC|
|Motor Drive||High Efficiency Pulse Width Modulator|
|Flow Rate Measurement||Mass Flow Sensor|
|Dimensions||US: 5.3 x 9.9 x 9.7 in. Metric: 13.5 x 25.1 x 24.6 cm|
|Weight||US: 19 lb. Metric: 8.63 kg|
