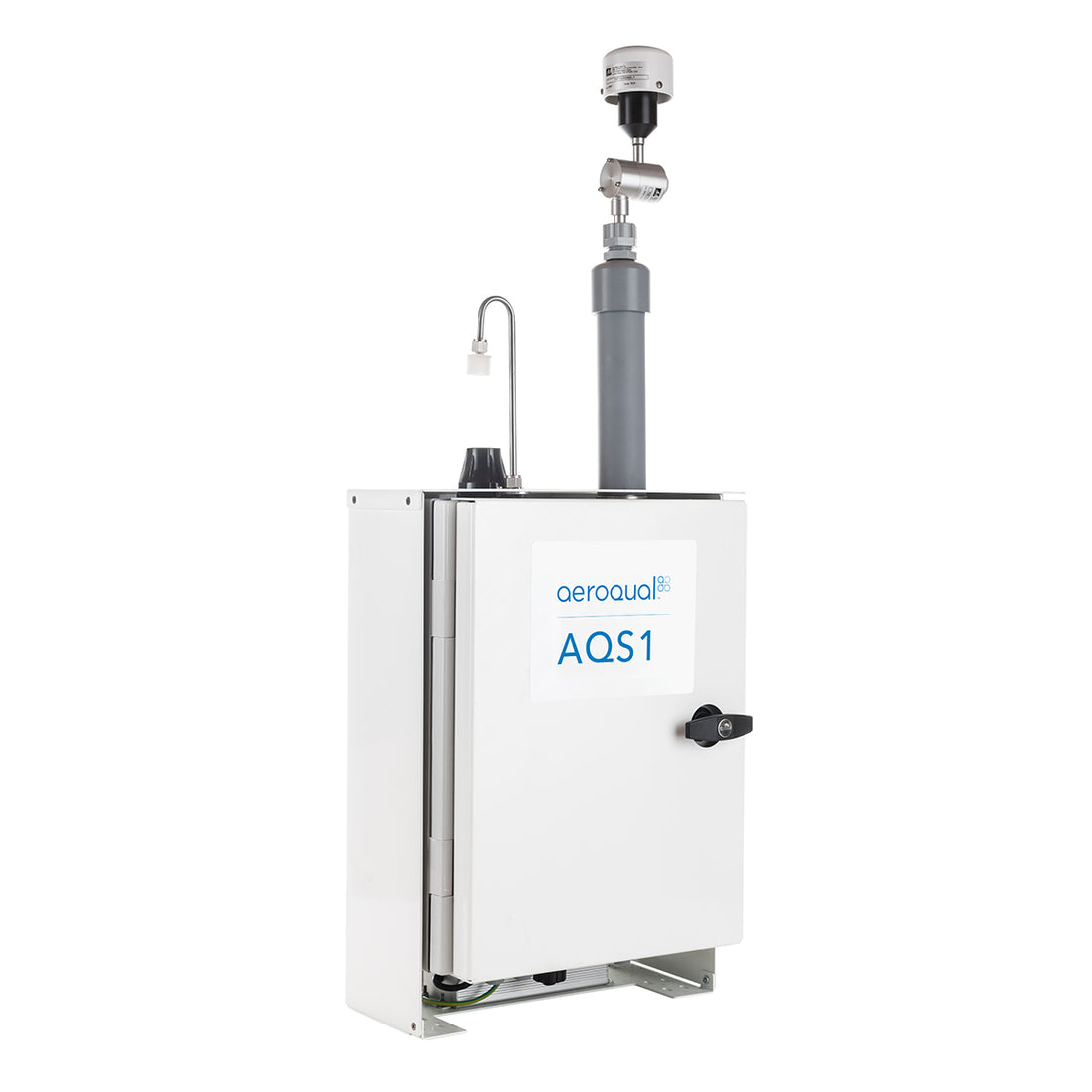

Aeroqual AQS 1 Smog Monitor
Air quality professionals and researchers use the AQS 1 smog monitor to better understand the spatial and temporal distribution of ozone and PM2.5 which are two of the most important pollutants. PM2.5 is often the most damaging pollutant during winter; ozone is often the most harmful during summer. They are also key contributors to photochemical smog.
The AQS 1 combines a robust nephelometer, PM2.5 sharp cut cyclone, and Aeroqual’s industry-leading GSS ozone sensor technology. The monitor performs to Near Reference levels yet costs much less than comparable analyzers; it is also lightweight and can be installed and moved with ease.
The AQS 1 is a fully integrated monitor. Housed in a rugged, lockable weatherproof enclosure, it includes an embedded PC and full software system for remote technical support, data management, and analytics.
The AQS 1 can be configured to measure particulate matter (TSP, PM10, PM2.5, PM1) and up to three gases (O3, NO2, VOCs) simultaneously. Because it is modular, you may order the unit with just PM2.5 for example, and add ozone or another gas at a later date (without returning to the factory).
The AQS 1 is supported by a global distribution network, meaning you’re never too far from a skilled technician ready to provide assistance and spare parts. In addition, Aeroqual’s online training system is free to all our customers, meaning you can become an expert on your AQS system before it even arrives.
Once the instrument operating system is installed, Aeroqual Connect lets you access data, assess performance and diagnose faults remotely (if you choose to give us access, we can help with that too). Aeroqual Cloud offers even greater levels of convenience with enhanced browsing speeds, multiple user management, fail-safe backup, email and SMS alerts and access to your data even when your instrument is offline.
Measure the key indicators pollutants in photochemical smog
Continuous real-time measurement of PM2.5 and ozone (O3)
1 part-per-billion (ppb) detection of ozone
No cross-sensitivity to nitrogen dioxide (NO2)
Upgradable to measure NO2, VOCs
Very high correlation to US EPA reference analyzers
Can be field calibrated for maximum traceability
Inlet heater to compensate for humidity effects
Measures and reports data in 1-minute intervals with user-selectable averaging
Onboard storage for over 5 years of data
Rugged weatherproof enclosure with solar shielding for very hot climates
Quick set up and relocation in under 10 minutes
Email / SMS alerts and FTP data export (optional)
Plug and play environmental sensors (optional)
Urban air monitoring networks
National air monitoring networks
Short term monitoring of ‘hot spots’
Community exposure: epidemiological studies, microenvironment, residential, schools, hospitals
Environmental Impact Assessments
|19H x 13W x 7.4D in
|483H x 330W x 187D mm
