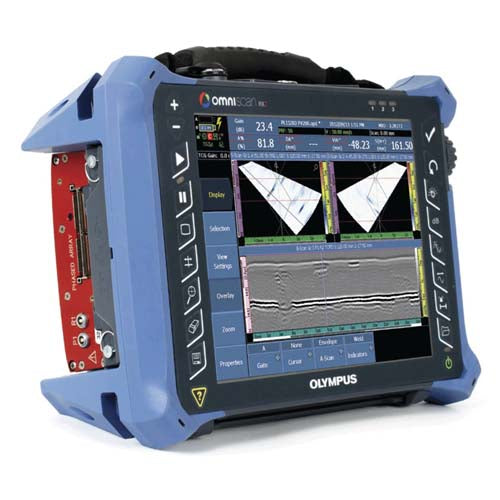

Olympus OmniScan MX2 Ultrasonic Flaw Detector

Pine Item #54143

This second generation OmniScan MX2 increases testing efficiencies, ensuring superior manual and advanced AUT application performance with faster setups, test cycles, and reporting, in addition to universal compatibility with all phased array and ultrasound modules: past, present and future. Designed for NDT leaders, this high-end, scalable platform delivers true next-generation NDT performance.

The OmniScan MX2 offers a high acquisition rate and new powerful software features for efficient manual and automated inspection performance"”all in a portable, modular instrument.

Powerstart your day the right way with the OmniScan MX2. The OmniScan MX2 simplifies and speeds up the setup process with its intuitive Weld Overlay software feature, so you can start testing immediately. Featuring the industry-standard phased array user interface with faster-than-ever performance, a bigger and brighter 10.4 inch screen, new and unique intuitive touch-screen capabilities, and faster data transfer, enabling you to get to your next inspection quicker.

State of the Art PA2 and UT2 Modules - As a world leader in phased array technology, Olympus has just released a new line of modules compatible with MX2 instrument.

PA2 - The new phased array offer"”led by the new innovative PA2 modules, features multiple improvements, such as:

Best Phased Array and TOFD Signal Quality Ever
Better signal-to-noise ratio
More powerful pulsers
64 pure gray tone

More Multi-group CapabilitiesBright, Large Touch Screen
Ability to use PA and UT channels simultaneously

General Hardware Improvements
Higher operating temperatures (45  °C)
New OmniScan probe connector with quick latch system
Designed for IP66 environmental rating
Extended autonomy on batteries

UT2 - The new Conventional Ultrasound module features the same technology of UT channels as the PA2 modules, but offers twice as many channels.

Features:

Bright Large Touch Screen

New Phased Array and TOFD Modules

New NDT SetupBuilder Design Software

New OmniPC Analysis Software

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications

Technical Specifications

Storage devicesSDHC card most standard USB storage devices or fast Ethernet
Data file size300 MB
USB ports3
Speaker outYes
Video outputVideo out (SVGA)
Ethernet10/100 Mbps
Encoder2-axis encoder line (quadrature up down or clock/direction)
Digital input4 digital TTL inputs 5 V
Digital output4 digital TTL outputs 5 V 15 mA
Acquisition on/off switchRemote acquisition enabled TTL 5V
Power output line5 V 500 mA power output line (short-circuit protected)
Alarms3 TTL 5 V 15 mA
Analog output2 analog outputs (12 bits) ±5 V in 10 kO
Pace input5 V TTL pace input
Display size26.4 cm (10.4 in.) (diagonal)
Resolution800 pixels x 600 pixels
Brightness700 cd/m2
Number of colors16 million
TypeTFT LCD
Battery typeSmart Li-ion battery
Number of batteries1 or 2 (battery chamber accommodates two hotswappable\nbatteries)
Battery lifeMinimum 7 hours with two batteries
Operating temperature\nrange-10 °C to 45 °C\n(14 ºF to 113 ºF)
Storage temperature range–20 °C to 60 °C (–4 ºF to 140 ºF) with batteries\n–20 °C to 70 °C (–4 ºF to 158 ºF) without batteries
Relative humidityMax. 70% RH at 45°C noncondensing
Ingress Protection RatingIP54
Shockproof ratingDrop-tested according to MIL-STD-810G 516.6
Connectors1 Phased Array connector: Olympus PA connector\n2 UT connectors: LEMO 00
Number of focal laws256
Probe recognitionAutomatic probe recognition
Aperture32
Number of elements128
PULSERPA CHANNELS
Voltage40 V 80 V and 115 V
Pulse widthAdjustable from 30 ns to 500 ns resolution of 2.5 ns
Pulse shapeNegative square wave
Output impedance< 25 O
RECEIVERPA CHANNELS
Gain0 dB to 80 dB maximum input signal\n550 mVp-p (full-screen height)
Input impedance65 O
System bandwidth0.6 MHz to 18 MHz\n(–3 dB)
Scan typeSectorial and linear
Digitizing frequency400 MHz (12 bits) after interpolation per 4*
Group quantityUp to 8
Maximum pulsing rateUp to 10 kHz (C-scan)
Number of data pointsUp to 8192
Real-time averagingPA: 2 4 8 16\nUT: 2 4 8 16 32 64
RectifierRF full wave half wave + half wave –
FilteringPA Channel: 3 low-pass 3 band-pass and 5 high-pass\nfilters.\nUT channel: 3 low-pass 6 band-pass and 3 high-pass\nfilters (8 low-pass filte
Video filteringSmoothing (adjusted to probe frequency range)
A-scan refresh rateReal time: 60 Hz
On internal clock1 Hz to 10 kHz
On encoderOn 2 axes: from 1 to 65536 steps
Number of points32: One TCG curve per focal law
Number of alarms3
ConditionsAny logical combination of gates
Analog outputs2
DimensionsUS: 8.9 x 7.2 x 1.6 in. Metric: 226 x 183 x 40 mm
