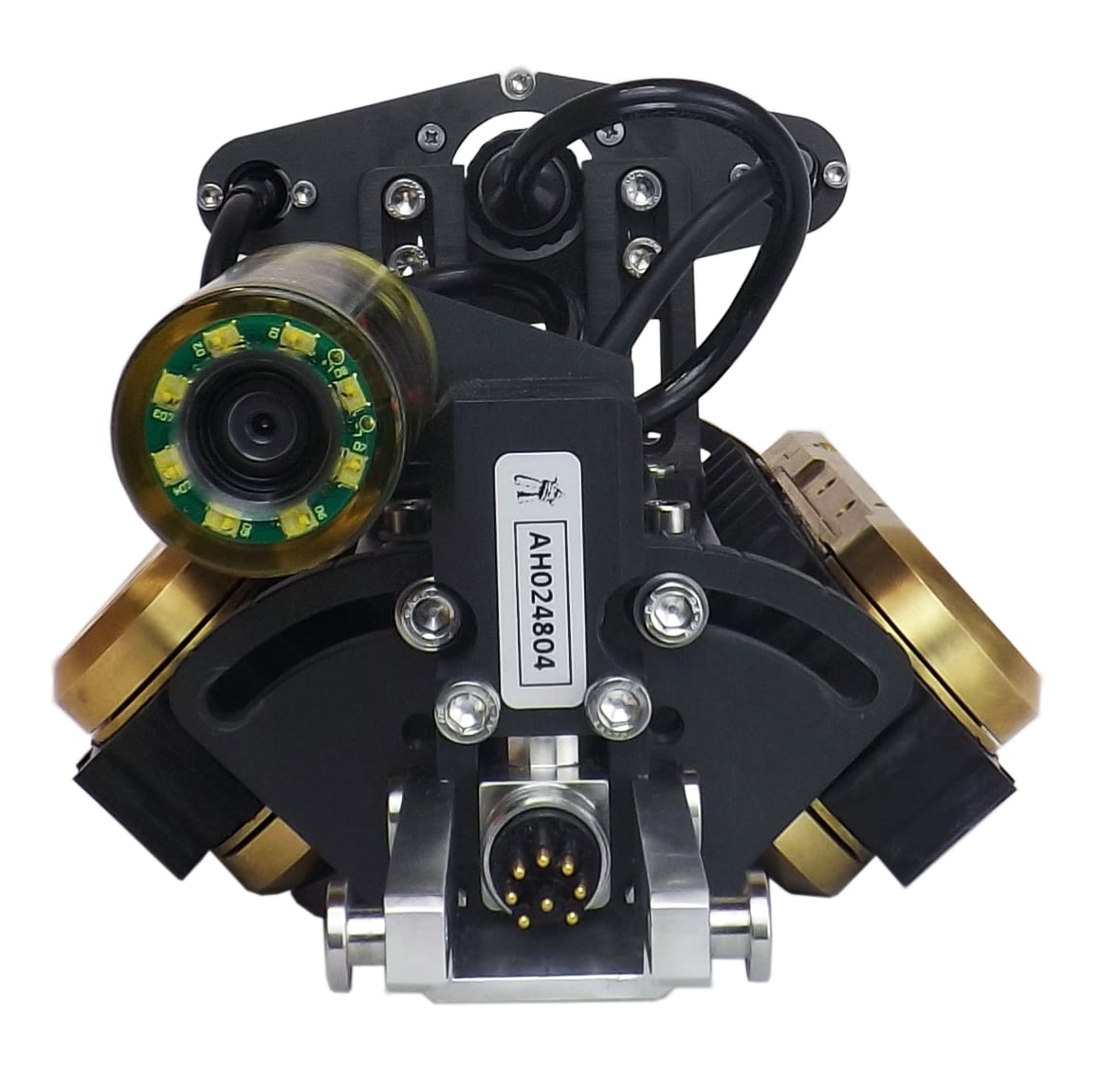

Inuktun VT100 MKII Crawler System

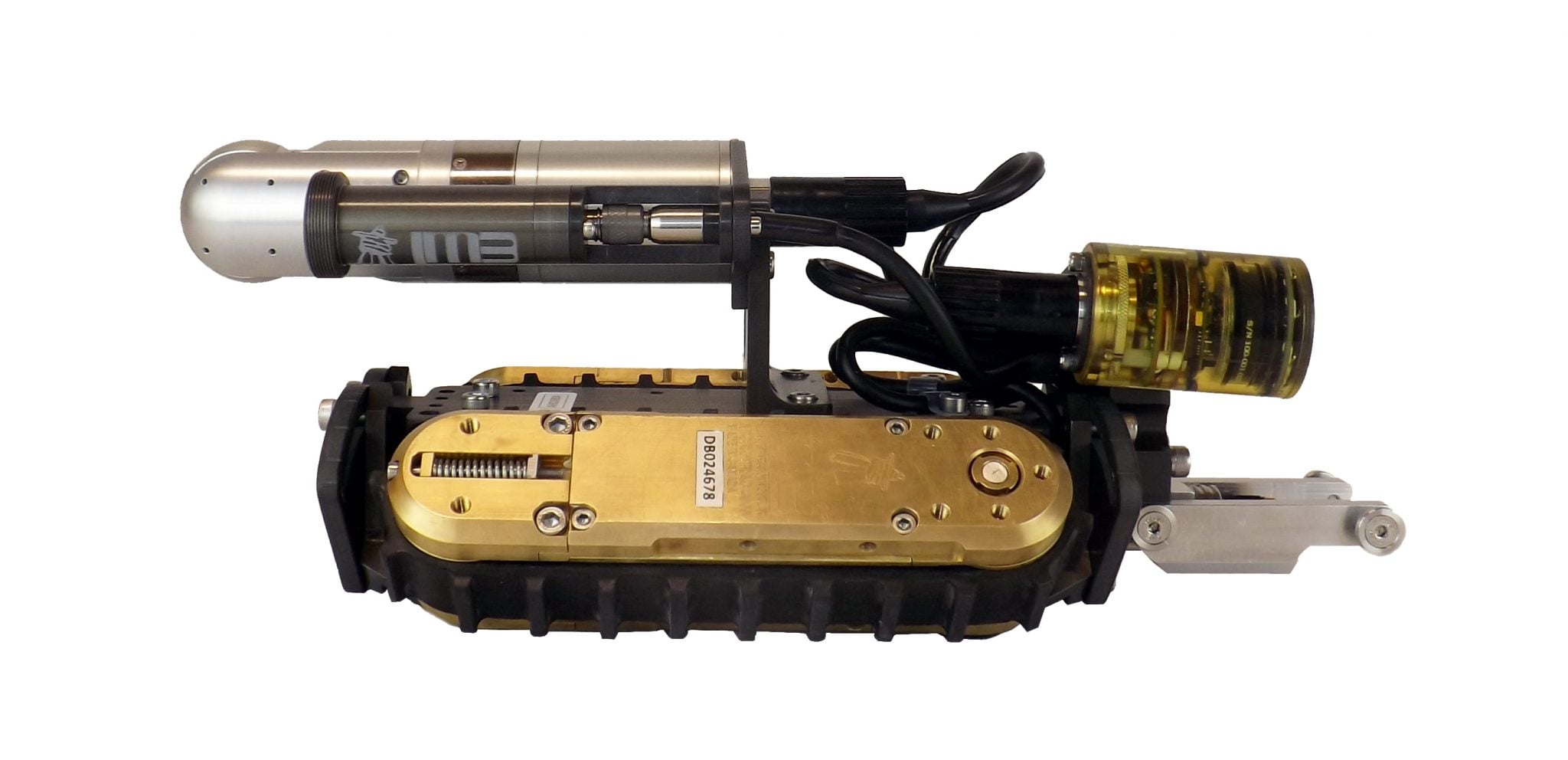

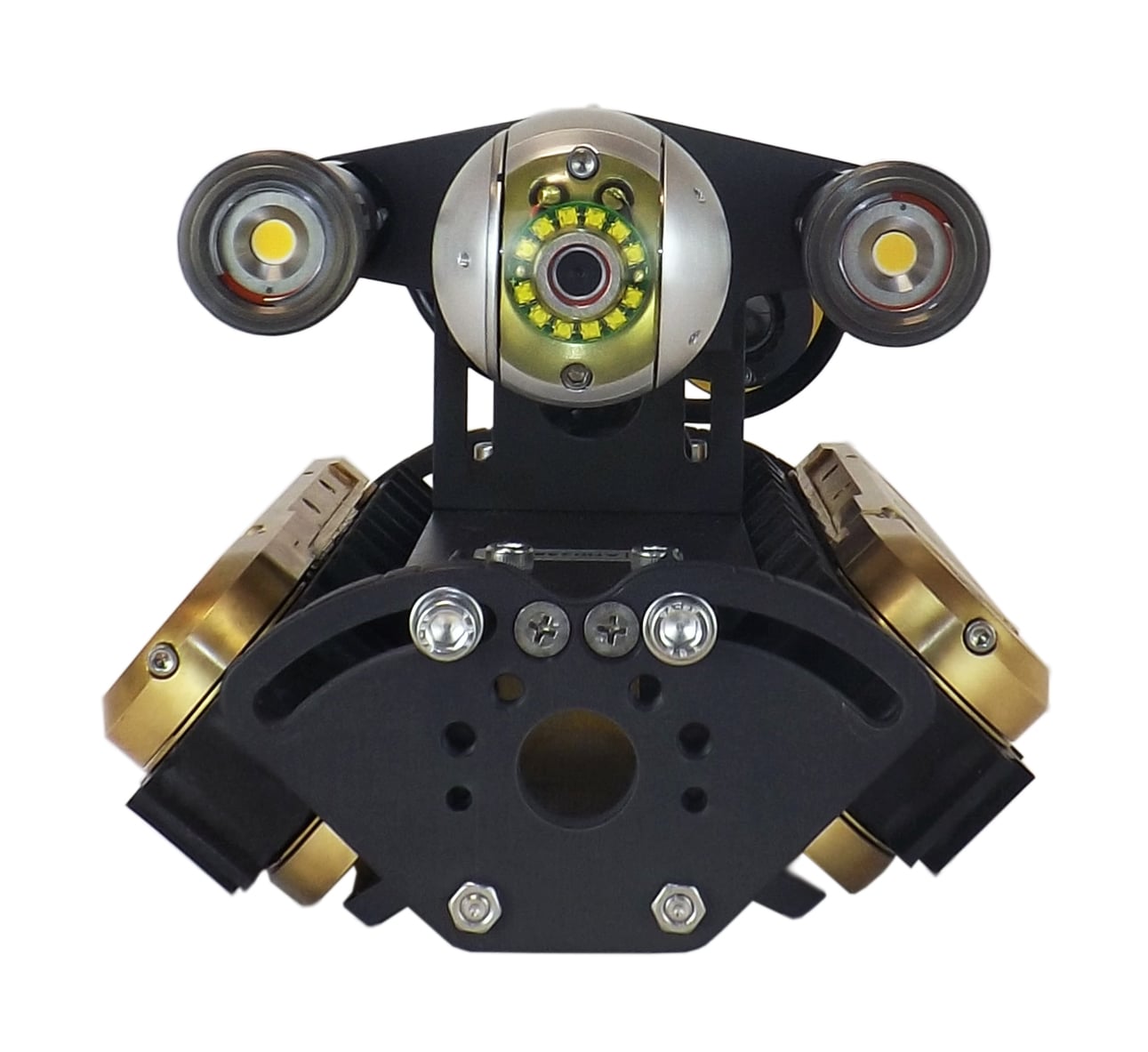

Inuktun's Versatrax 100™ Mark II is a miniature pipe inspection system with a variety of configurations that can tackle almost any confined space inspection application. Offering full modularity, the Mark II can be arranged either inline for small diameters, in parallel configuration for larger pipes and ductwork, or with a magnetic attachment for vertical and inverted travel on ferrous surfaces.
With this latest design, you can connect a camera directly to the tether cable, so it also works as a standalone inspection camera too. And it is truly portable; the entire system can be packaged in hard shell industrial carry cases making it easy to transport and quick to set up in almost any environment.
With options that include multiple cameras, longer tethers, advanced reporting software and image enhancement systems, the possibilities are almost endless. Like all Inuktun crawlers, it is simple to use and quick to deploy making it ideal for scheduled or emergency inspections in petrochemical plants, nuclear-generating stations, hydroelectric facilities, refineries and more. The versatility of this robust inspection crawler provides an all-in-one system for small and medium-sized pipes, tanks, ships, and boreholes or similar confined spaces where a downhole camera is needed. Best of all, the Mark II is compliant with IM3™ (Inuktun Multi-Mission Modular) technology so you can scale up your capability as your inspection needs evolve.
Depth Rating: 60m / 200ft
Maximum Tether Length: 300m / 1000ft
Maximum Speed: 9m / 30ft per minute
Vehicle Payload: up to 4.5kg / 10lb
Front Facing Camera: Spectrum 45
Operating Temperature: 0°-40° C / 32°-122° F
Oil & Gas (Onshore/Offshore)
Tank Inspection (Internal/External)
Subsea/Ship Hull Inspection
Well/Caisson Inspection (Drop Camera Operation)
|60m / 200ft
|Maximum Tether Length
|300m / 1000ft
|9m / 30ft per minute
|up to 4.5kg / 10lb
|Front Facing Camera
|0°-40° C / 32°-122° F
|2 x 4000 series Microtracs 1 x Spectrum 45 camera auxiliary LED lights (parallel vehicle) inline and / or parallel chassis and wiring harness 100m / 330ft tether ICON Pro with InPRO editing software control system and interface box.
|33x4x4in (inline) 13x7x6in (parallel)
|848x100x100mm (inline) 331x170x150mm (parallel)
