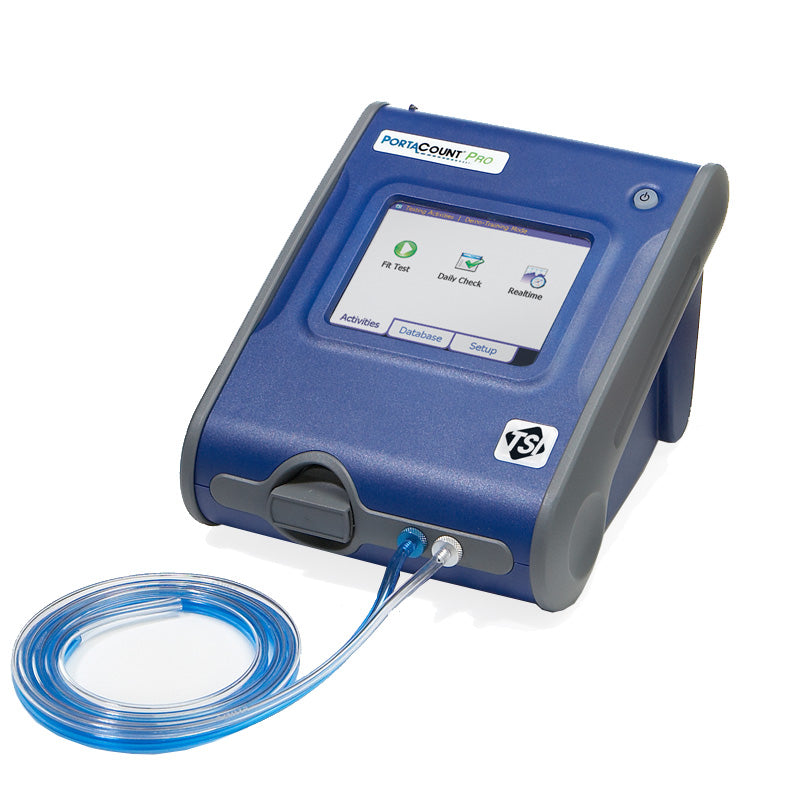

TSI Portacount PRO 8030 Respirator Fit Tester
TSI Instruments

TSI Portacount PRO 8030 Respirator Fit Tester

Pine Item #51424

The PORTACOUNT ® PRO Respirator Fit Tester is the easy way to reliably fit test any tight-fitting respirators.

The PORTACOUNT PRO Respirator Fit Tester 8030 eliminates the guesswork associated with tedious and error-prone qualitative fit test methods. No other respirator fit tester can quantitatively fit test so many types of respirators - gas masks, SCBAs, respirators, even disposables (for fit testing N95 disposable respirators, see the PORTACOUNT PRO+ Respirator Fit Tester). If the mask requires fit testing, count on the PORTACOUNT PRO fit tester to provide the fastest and easiest OSHA-compliant fit test method.

Features:

Simple and easy to use

Stand alone operation - quicker setup and easier operation

Optional mask sampling adapters allow fit testing with employee's own mask

Color touch screen lets you operate the instrument with a touch of your finger a pen or stylus

Automates fit testing with FITPRO™ Fit Test Software

OSHA-compliant for all respirators except N95 (Easy upgrade to Model 8038 with built-in N95 technology)

Use with external computer to generate reports and print fit test cards

Measures fit factors greater than 10000

Computes respirator fit factor using microscopic particles in ambient air

Applications:

Simple and easy to use

Stand alone operation - quicker setup and easier operation

Optional mask sampling adapters allow fit testing with employee's own mask

Color touch screen lets you operate the instrument with a touch of your finger a pen or stylus

Automates fit testing with FITPRO™ Fit Test Software

OSHA-compliant for all respirators except N95 (Easy upgrade to Model 8038 with built-in N95 technology)

Use with external computer to generate reports and print fit test cards

Measures fit factors greater than 10000

Computes respirator fit factor using microscopic particles in ambient air

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

Alcohol Type99.5%+ reagent grade isopropyl
Alcohol - Hours Per Charge6 hours at 21°C (70°F)
Temperature Range - Storage-40 to 70°C (-40 to 160°F)
Temperature Range - Operation0 to 38°C (32 to 100°F)
Flow Rate - Sample350 cm3/min
Flow Rate - Total1000 cm3/min (nominal)
PowerAutosensing 100 to 250 VAC 50 to 60 Hz
Fit Factor MeasurementDirect measurement of fit factor (Cout/Cin)**
Respirator Facepieces that can be Fit TestedFull-face elastomeric\nHalf-face elastomeric\nEN series P3 filtering-facepiece\nEN series P2 filtering-facepiece*\nEN series P1 filtering-facepi
Typical Fit Factor Accuracy±10% of reading
Fit Factor Range1 to greater than 10000

Dimension

USMetric
w/ Carrying Case Depth19.5495
w/ Carrying Case Height9230
w/ Carrying Case Width13.7348
Height6.75170
Width8.5220
Depth9.5240

Weight

USMetric
Weight - Unit Only5.02.7
Weight - Unit Standard Accessories and Case167.3
