TSI 8371 w/5 Hood Kit
TSI Instruments

TSI 8371 w/5 Hood Kit

Pine Item #54445

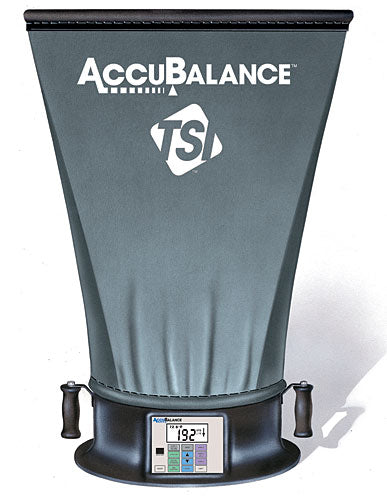

Measure the air volume flowing through registers, diffusers and grilles with an AccuBalance air capture hood. Use it to balance an HVAC system, spot check a room or a building or as part of an indoor air quality study. Weighing just seven and a half pounds, the AccuBalance is easy to carry, lift and use. Just hold the hood up to a diffuser or grill and read direct airflow on the large digital display, which is backlit for easy reading in poor lighting conditions. Input temperature and barometric pressure and obtain an automatic conversion between actual and standard flows. The rental unit comes with five separate hood sizes. Accubalance is a registered trademark of TSI Incorporated.Sample and hold function displays reading of one sample

Features:

Direct read of air flow

NIST Traceable Calibration

Sample and hold function displays reading of one sample

Automatic conversion between actual and standard flows

Field calibration adjustment

Variable time constant

K factor function

Back-lit display

Applications:

Direct read of air flow

NIST Traceable Calibration

Sample and hold function displays reading of one sample

Automatic conversion between actual and standard flows

Field calibration adjustment

Variable time constant

K factor function

Back-lit display

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

Flow Range30 to 2000 cfm
Accuracy± 5% of reading and ± 5 cfm
Hood Sizes (5)24\" x 24\" 24\" x 48\" 12\" x 48\" 12\" x 60\" 36\" x 36\"
Power4 C-size batteries 40 hours operation
Carrying Case Dimensions (HWD)26\" x 26\" x 7\"

Dimension

USMetric
Dimensions26 x 26\" x 7\"\"660 x 660 x 1.8 mm

Weight

USMetric
Weight7.5 lbs3.4 kg
