Solinst Model 800 Low Pressure Pneumatic Packers

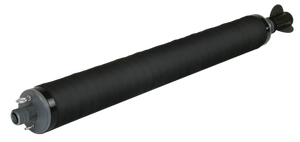

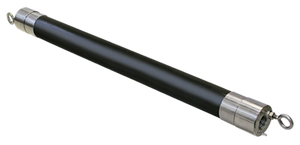

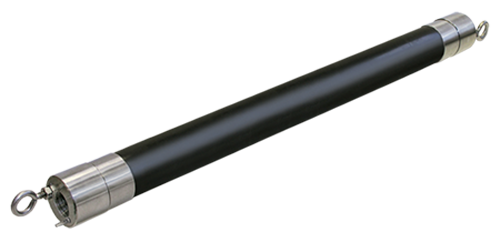

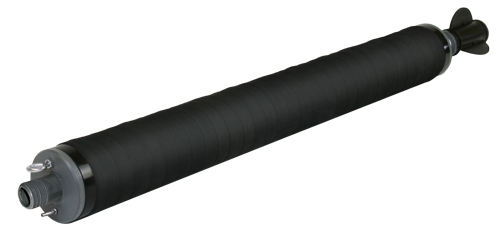

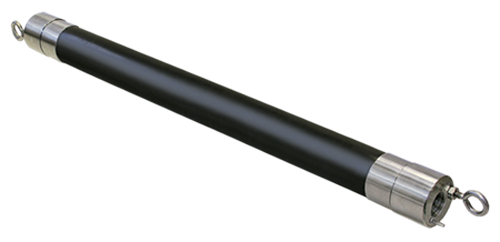

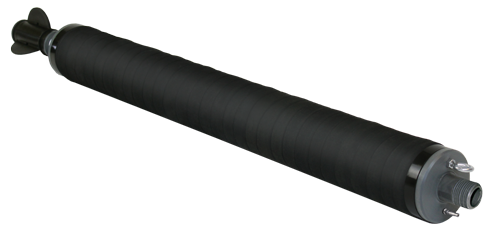

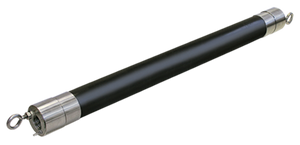

These simple inexpensive packers inflate with a hand pump and are available in 1.8" and 3.9" (46 mm and 99 mm) diameters. Primarily for short term use in 2" and 4" (51 mm and 102 mm) monitoring wells, they can also be used in smooth boreholes and wells with 1.9 – 5" (48 – 127 mm) inside diameters. Typical inflation pressures for the 1.8" (46 mm) packers are from
20 – 40 psi (140 – 275 kPa) above hydrostatic pressure, and from 20 – 30 psi (140 – 205 kPa) for the 3.9" (99 mm) packers.
The Packers utilize a gland of black carbon reinforced rubber (BCR) on a Sch 80 PVC body. They are lowered on a support cable or a rigid PVC drop pipe. If a rigid drop tube is not required for your application, it is recommended to attach a safety line to the eyebolt provided. The Solinst Model 103 Tag Line provides a convenient, graduated support cable that can be used for this purpose, as well as for measuring placement depth. The inflation line is standard LDPE tubing and connects to the packers using a simple push fitting.

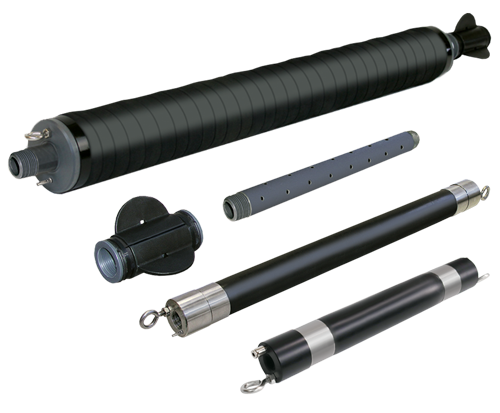

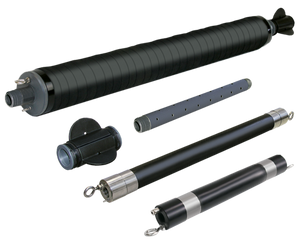

Single or Straddle Packers
Solinst packers are ideal for use with Solinst Bladder Pumps or Double Valve Pumps, which can be easily attached above the packers. The water inlet can be below a single packer, or through perforated pipe fitted between straddle packers. For hydraulic conductivity testing, Solinst Leveloggers can also be suspended, either below or between packers, from the eyebolt on the bottom of the packer.

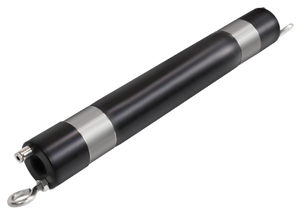

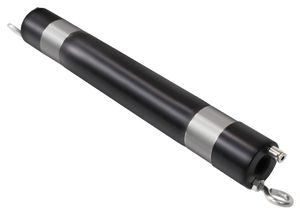

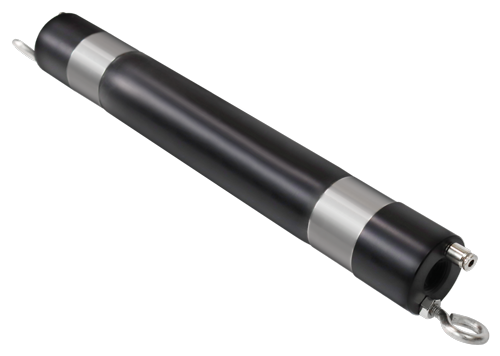

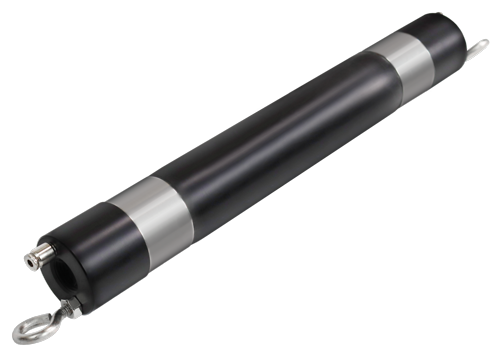

800M Mini Pneumatic Packers
The 800M Mini Packers are 1 ft. (305 mm) in length and 1.8" (46 mm) in diameter, available in single or straddle packer setups. They are designed for falling head tests, and work easily with the Solinst Model 415 12V Pump to isolate groundwater sampling zones and reduce purge volumes in nominal 2" OD wells. They are also useful when multiple, shorter well intervals need to be isolated, e.g. during aquifer testing.
Applications:
Water sampling
Hydraulic conductivity testing
Datalogging with a Levelogger
Minimizing purge volumes
Reducing well development time
Slug and pumping tests
Injection of tracers, amendments or other materials
Air sparging (low pressure)
| Packer Size OD | 1.8" (46 mm) | 3.9" (99 mm) |
| Access ID | 1/2" (12.7 mm) | 1" (25.4 mm) |
| Gland Length | 23" (584 mm) | 30" (762 mm) |
| Overall Length | 29" (737 mm) | 36" (914.4 mm) |
| - with centralizers | Same | 44" (1,117.6 mm) |
| Weight | 1.5 kg (3.4 lbs) | 4.3 kg (9.4 lbs) |
| Borehole Size | 1.9 – 2.4" (48 – 61 mm) | 4.0 – 4.4" (102 – 112 mm) |
| - with centralizers (trim to suit) | 2.5 – 3.5" (63 – 89 mm) | 4.5 – 5.0" (114 – 127 mm) |
| Pipe Fittings | 1/2" NPT Female | 1" NPT Male |
| - with centralizers | Same | 1" NPT Female |
| Packer Size OD | 1.8" (46 mm) |
| Access ID | 1/2" (12.7 mm) | >
| Gland Length | 7" (178 mm) |
| Overall Length | 12" (305 mm) |
| - with centralizers | n/a | /tr>
| Weight | 0.5 kg (1.2 lbs) |
| Borehole Size | 1.9 – 2.1" (48 – 53 mm) |
| - with centralizers (trim to suit) | n/a |
| Pipe Fittings | 1/2" NPT Female |
| - with centralizers | n/a |
