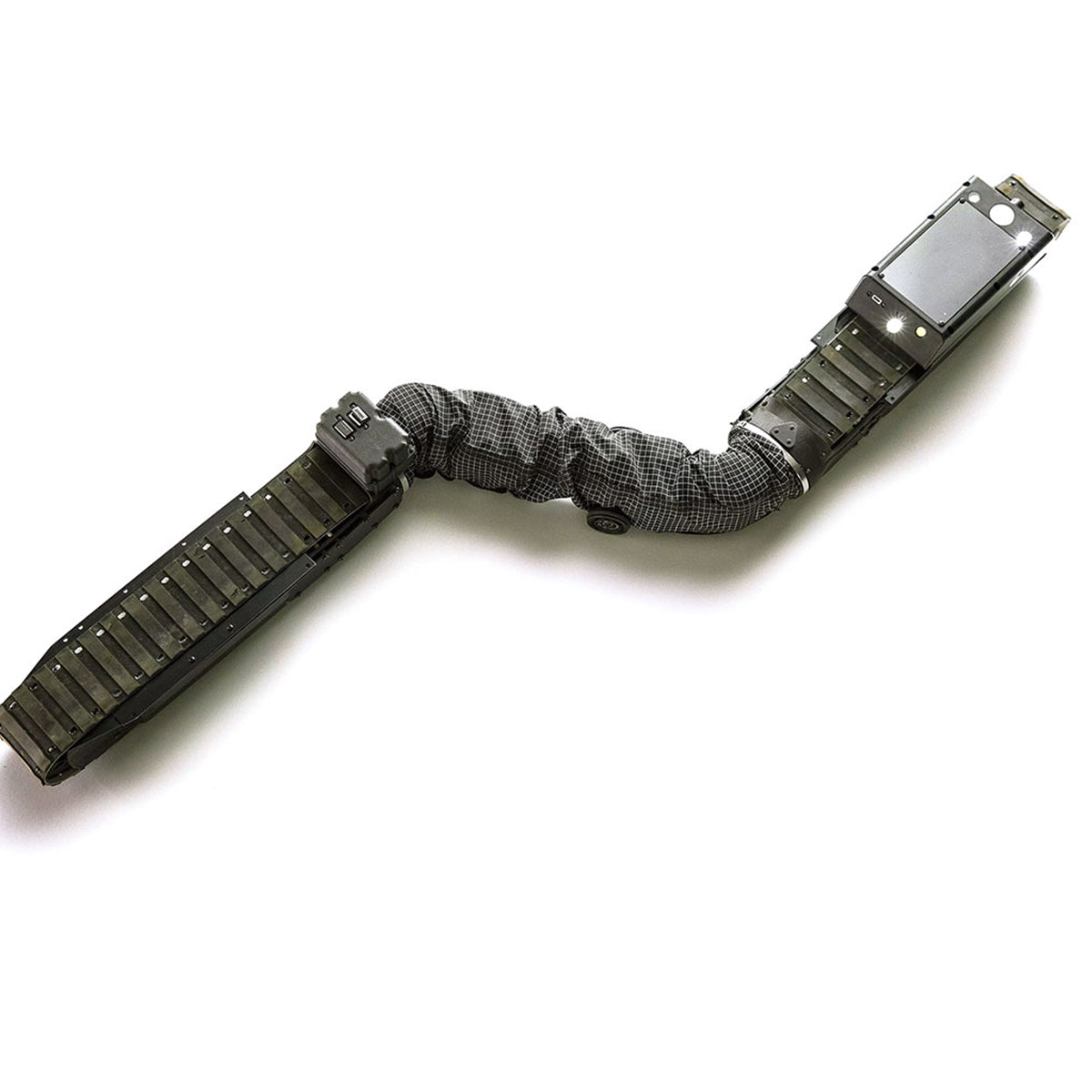

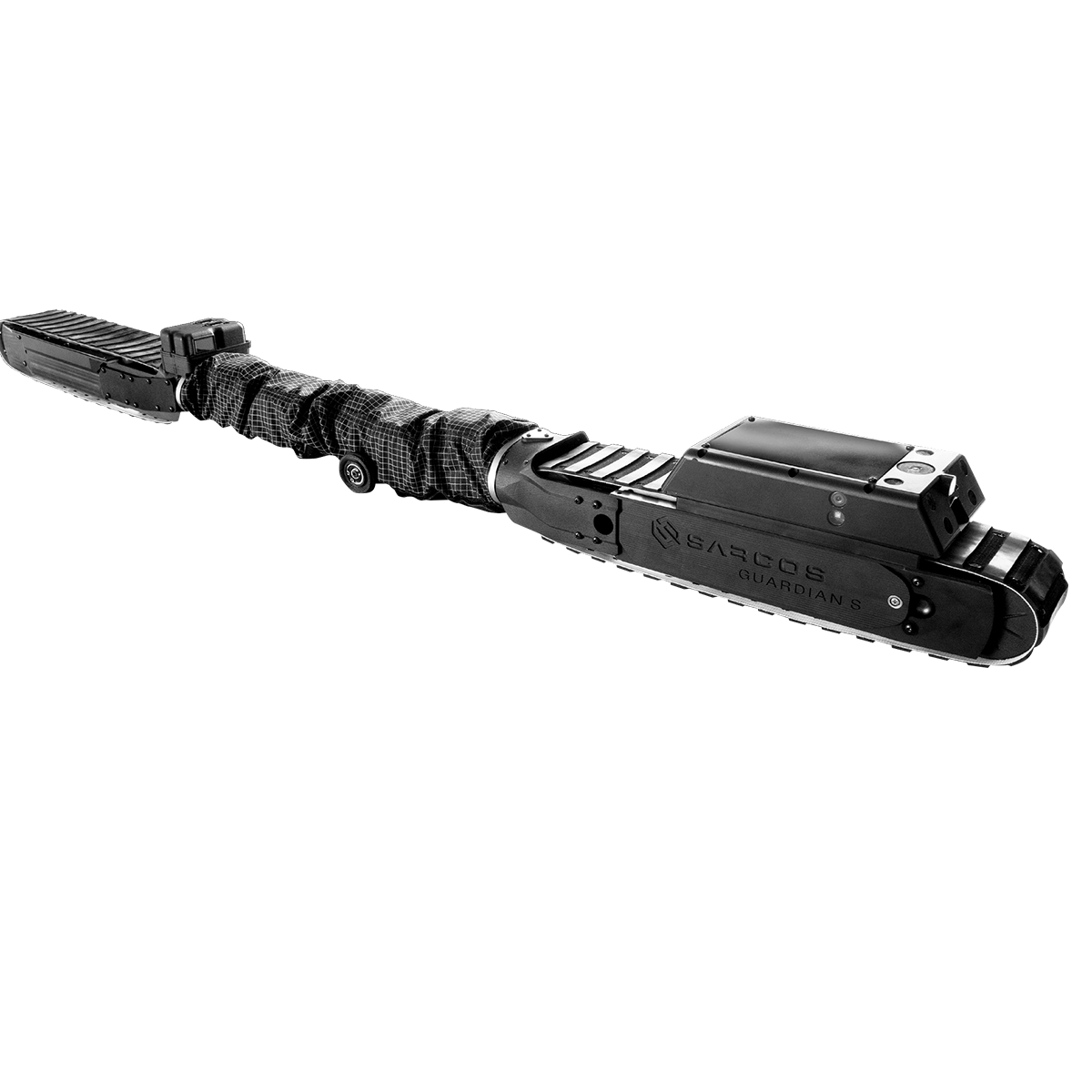

SARCOS Guardian-S Magnetic Robotic Crawler System

Pine Item #56045

Premier surveillance and inspection tool, the GuardianS magnetic robotic crawler is uniquely capable, cost-effective and man-portable, weighing approximately 16 lbs. The robot can reliably traverse challenging terrain and facilitate two-way, real-time video, voice and data communication, all from a safe distance. In the context of inspecting operational facilities and equipment, robotic technology can be looked at as an element of digitally transforming the asset management process. While there is a lot of technology that is involved in such a transformation, robotics in the inspection process can provide a direct digital link to the physical asset. Various studies at IDC have found that transforming the asset management process can yield significant improvements in key areas such as 20% improvements in asset uptime, 15%-20% reductions in maintenance labor costs, and 8%-10% improvements in mechanical efficiencies. Again, while the use of robotics is only one part of a transformation effort, the technology has a role and will yield tangible value for the operation.

Features:

Lightweight & Man-Portable: Easily hand-carried and able to carry a 10-lb payload on horizontal surfaces

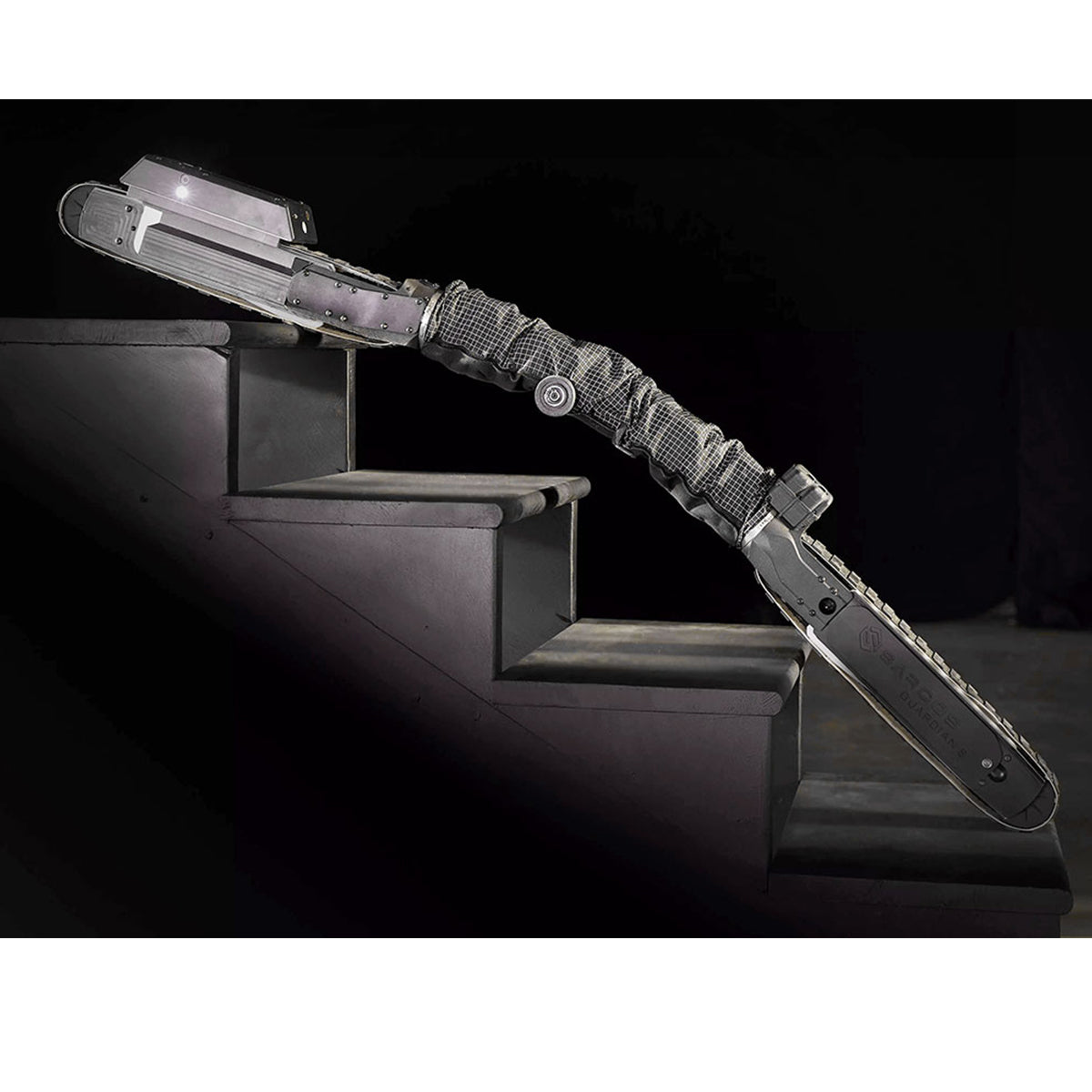

Expansive Navigation: Low-profile vertical surfaces all-terrain: mud gravel water unstructured terrain and confined spaces as narrow as 7 inches

Real-Time Communication: Transmits two-way video audio and sensor data while the operator stays at a safer standoff distance

Cloud Connected: Command Center provides robot control data gathering analytics and secure communications

Simple Remote Controls: Allows operators to get up to speed quickly and enables safer surveillance and payload deployments

Immediate Situational Awareness: Performs ongoing observation and investigation of dangerous environments to keep its operator out of harm’s way

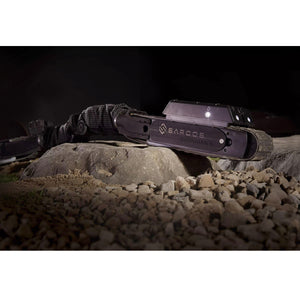

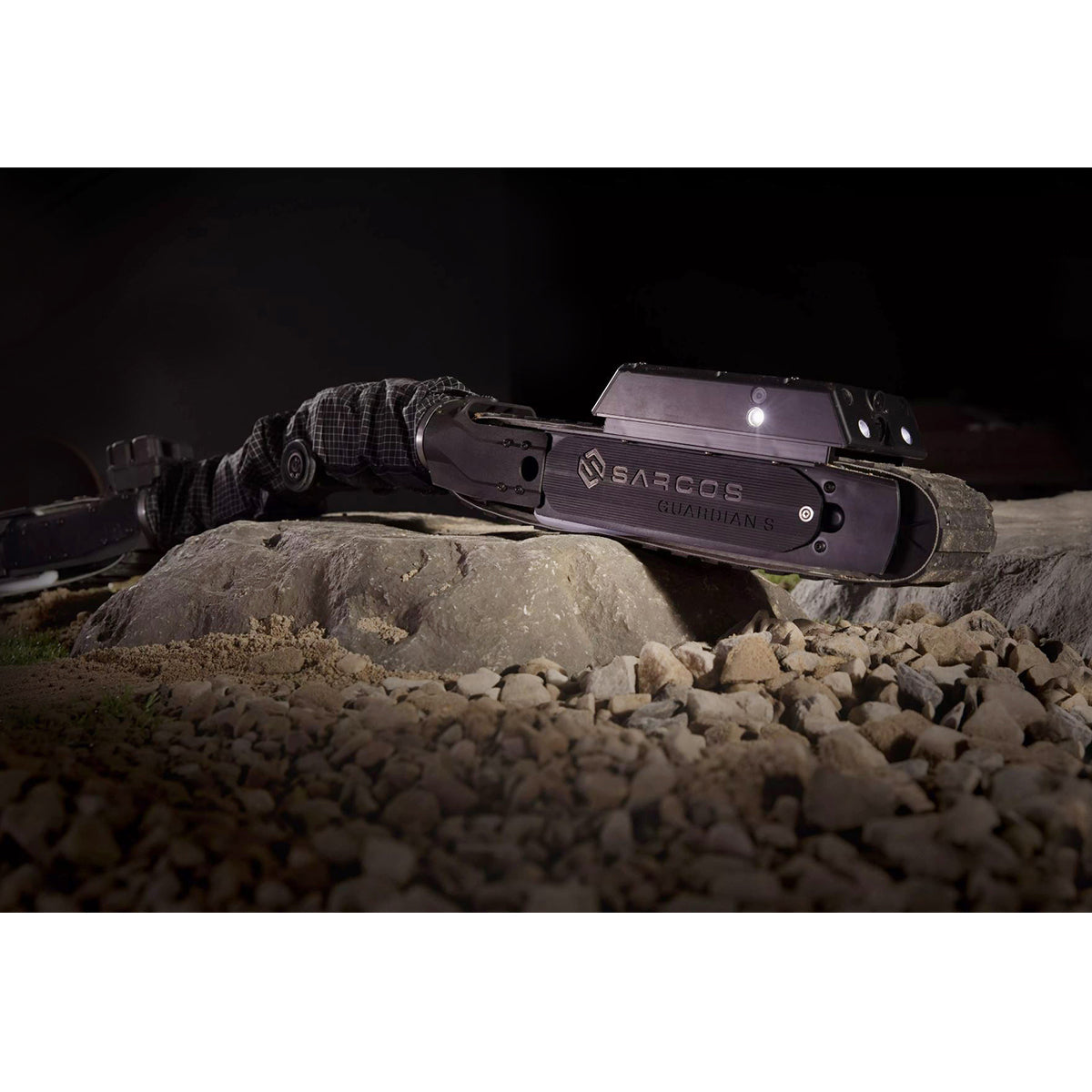

Ruggedized All-Terrain Design: Navigate indoor and outdoor territory complete with 3-D mapping with up to 3 miles of battery capacity

360° Video Coverage: Provides 12 hours of uninterrupted surveillance with both daytime and nighttime vision

Command Center: Cloud enabled mission management data collection storage and analysis

Magnetic & Waterproof: Scale ferromagnetic surfaces and IP65-certified as dustproofand water protected

Cloud Analytics & Storage: Command Center leverages Microsoft Azure Cloud Services and IoT hub

Mobile IoT Platform: Gather and transform data from sensors and systems to improve operational awareness

Applications:

Boiler visual inspection - first look leak identification

Coal Transport Systems

Coal and Silo Bunkers

Economizer-Back pass

Tool and debris retrieval

Hi energy pipe inspection

Circulating water piping

Remote scanning and 3D image capture

Steam drums

Steam lines

Any other 10\" + pipe inspection

Tank & vessel inspections

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

Max Speed1.4 MPH (unloaded)
Max PayloadHorizontal Surface - 10lbs Vertical Surface - 5lbs
Operator Control Unit8.2 in. L x 16.5 in. W x 3.25 in. H
Operating Temp Guardian S-4 to 140 0F -20 to 60 0C
Charging Times˜3 hrs.
I/OOne USB2 (power only)
CommunicationsWireless: Wi-Fi IEEE 802.11ac Options: RF Module (Industrial multiple ISM bands: 915 MHz 2.4 GHz 4.9 GHz & 5.75 GHz LTE)
Video(6) 4k color cameras with digital zoom Optiontial: FLIR hi-res camera
AudioBuilt-in microphone and speaker to enable two-way audio between the OCU and robot (half duplex PTT)
AccessoriesTwo-bay battery charger Options: Payload platform with tripod mount adapter safety tether Picatinny rail six-bay battery charger hard and soft carrying cases

Dimension

USMetric
Dimensions52 in. L x 4.7 in. W x 5.2 in. H 21.7 in. L x 17.4 in. W x 5.2 in. H

Weight

USMetric
Weight Guardian S Magnetic˜18 lbs.
