Quest Edge 5 (Type 2)
Quest Edge 5 (Type 2)
Pine Environmental

Quest Edge 5 (Type 2)

Pine Item #51419

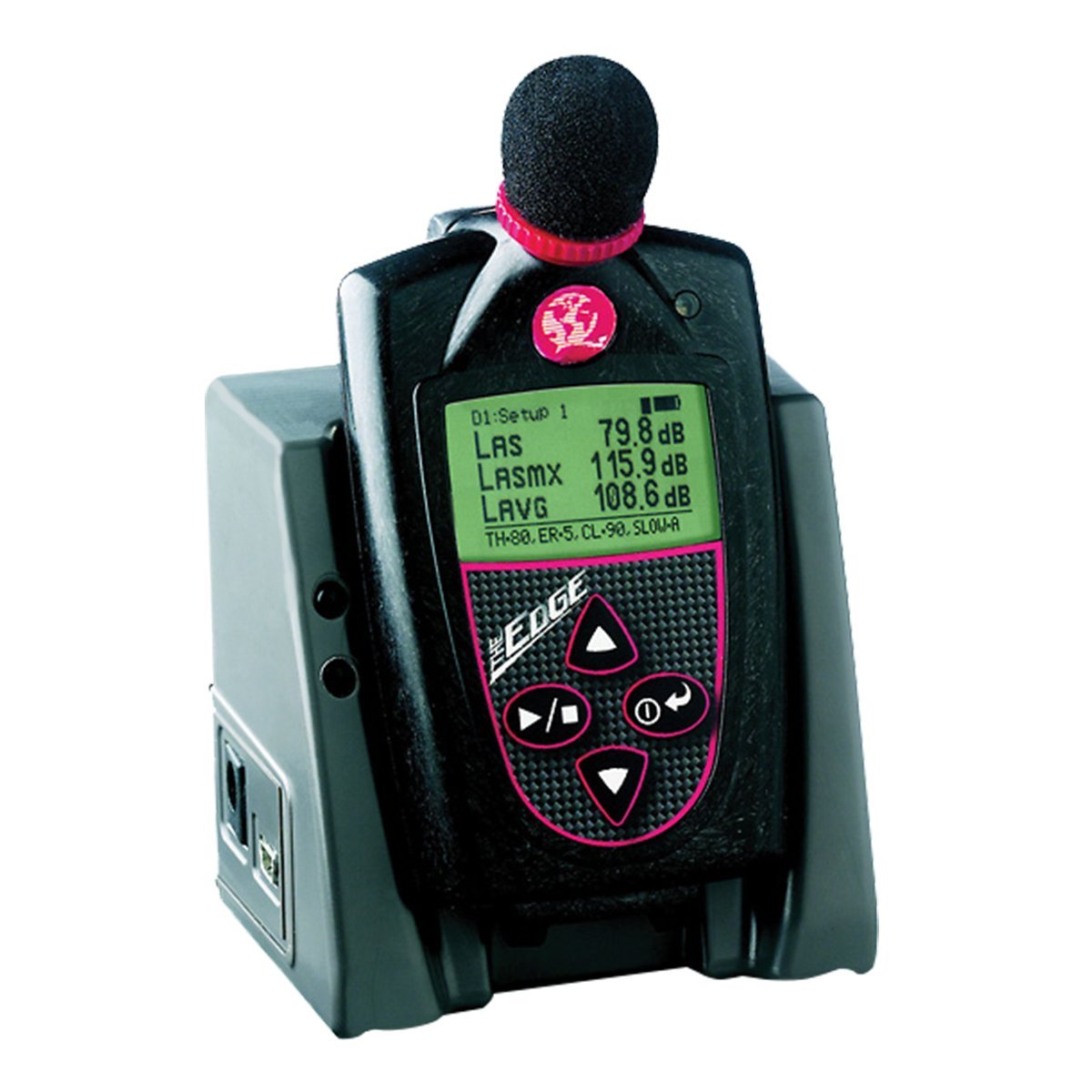

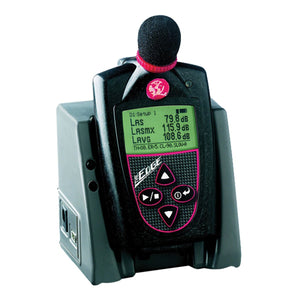

The Quest Edge 5 model is a cable-free personal noise dosimeter with Intrinsic Safety approvals from MSHA, SIRA (ATEX), CSA (US and Canada), and Simtars (IECEx) for use in potentially hazardous environments such as mines, petrochemical sites, and manufacturing facilities. The Edge 5 noise dosimeter offers users a lighter, more ergonomic method to monitor noise levels with its compact contoured design, advanced feature set, and intrinsic safety certification.

Features:

Certified Intrinsically Safe

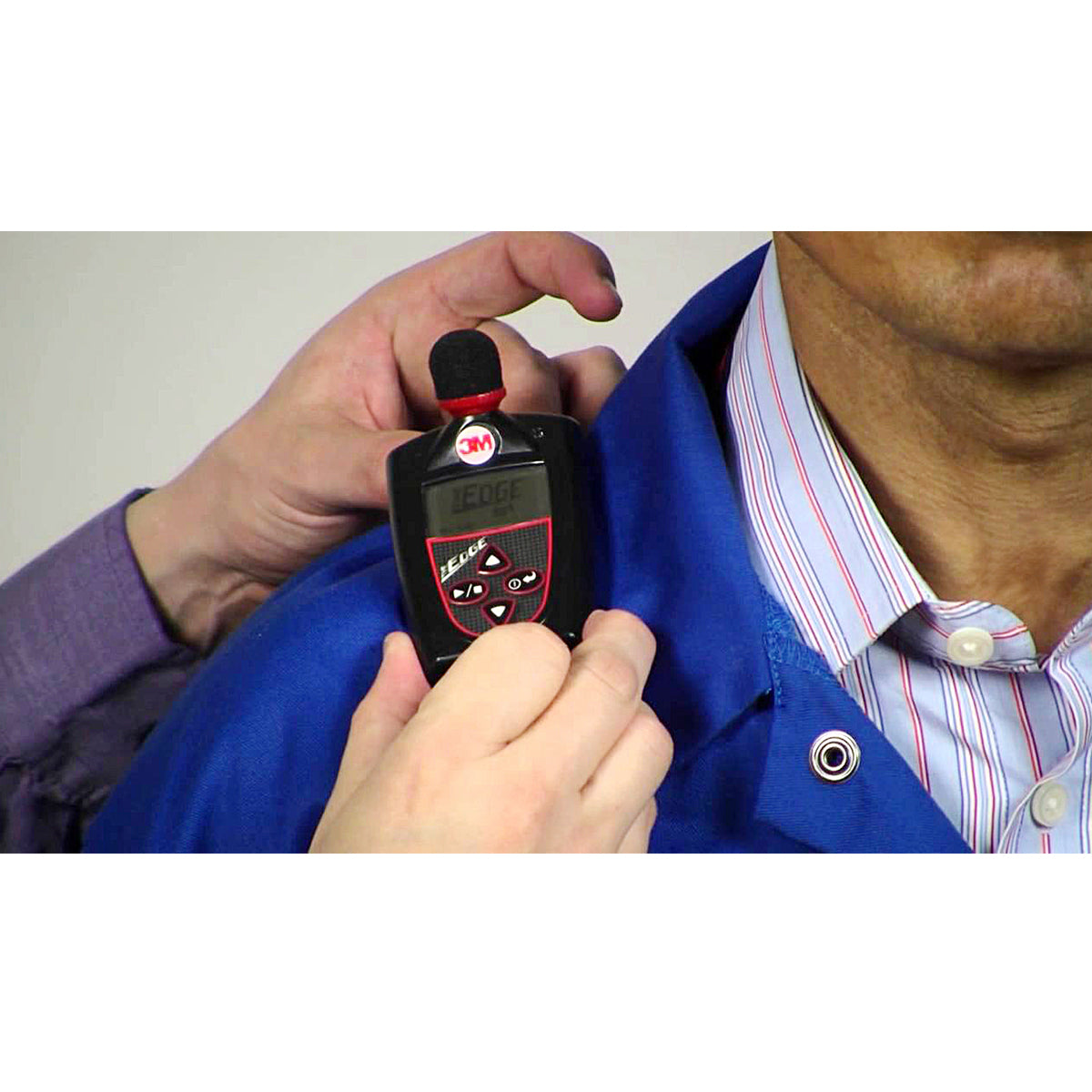

Cable Free, Contoured Shoulder Mount Design

Advanced Noise Dosimeter with (2) Virtual Dosimeters and Time History

LED Dose Indicator

Lockout Ability

Detection Management Software

Applications:

Mining

Oil, Gas and Downstream Refineries

Commercial Construction

Road Construction

Military

Industrial Manufacturing

Quantity must be 1 or more
Email for Quote

Specifications
  • Battery life - 40 hours nominal without LED activated
  • Microphone - 1/4 inch pre-polarized condenser (electret) field replaceable threaded microphone
  • Measuring Range - 70 dB - 140 dB
  • Dosimeter -  Edge 5 has three independent dosimeters. The third dosimeter is enabled through Detection Management Software.
  • Convenient Presets – Preprogrammed to OSHA and ACGIH standards.
  • Frequency weighting – A, C, Z
  • Independent Exchange Rates - 3 dB, 4 dB or 5 dB
Manuals & Data Sheets
