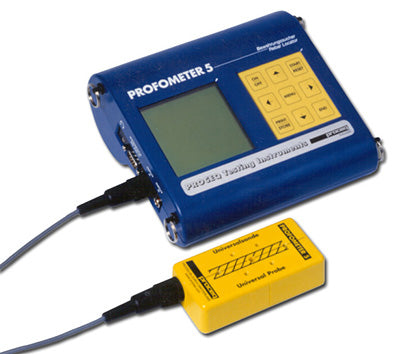

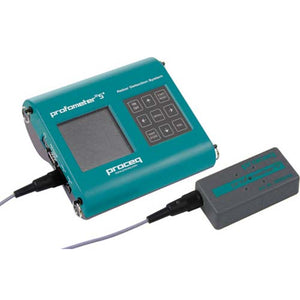

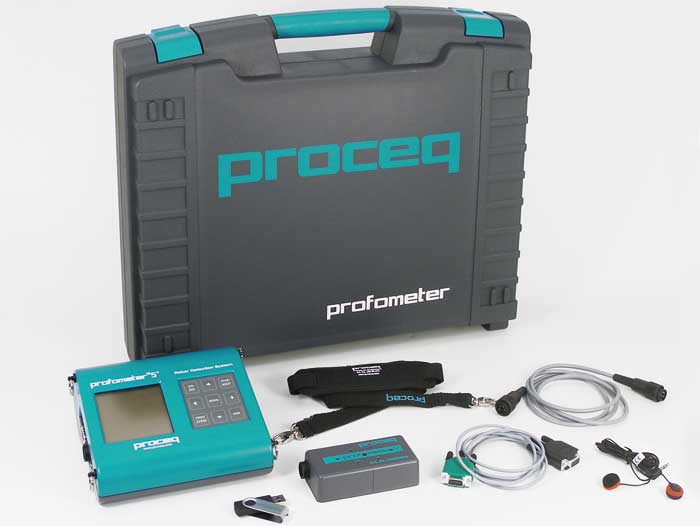

Proceq Profometer 5 Rebar Locator (Covermeter)
Pine Item #
The Proceq Profometer Rebar Locator (Covermeter) with Scanlog is a good choice of NDT rental instrument for reinforced bars and welded wire mesh location, as well as measuring concrete cover and determining the diameter of the bars.
Equipment available for both rental and purchase
Request a Quote
Specifications
Manuals, Data Sheets & Software
| Range: | Shallow: up to 3.94" (100mm) Deep: up to 7.28" (185mm) |
| Accuracy: | Better than ±0.08" (2mm) or ±5% for cover |
| Bar Sizing: | #3-12 (8-40mm) better than ±1 bar size |
| Display: | LCD w/ backlight |
| Memory: | 160,000 objects with 60 measurements |
| Data Output: | RS232 or USB adapter |
| Power Supply: | 1.5V (6), 45 hr. operation; 30 with backlight |
| Dimensions: | 16.3 x 19.7 4.9" (415 x 500 125mm) |
| Weight: | 12 lb (5kg) |
