ORS 100' OIL/WATER IF PROBE
Geotech

ORS 100' OIL/WATER IF PROBE

Pine Item #51764

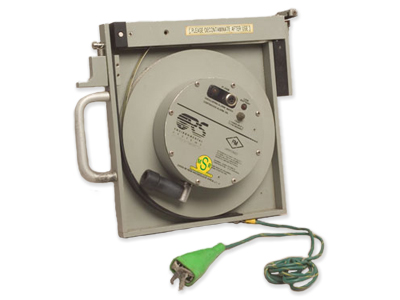

This instrument rapidly and accurately measures depth to hydrocarbons and water in monitoring wells and tanks. It is lightweight, battery-operated, and exceptionally rugged. The ORS is built with a NEMA-3, weather-proof aluminum housing and chemically resistant probe, and 100ft tape. Measurements of depth to fluid are accurate to within 1/100 of a foot. The probe fits into openings smaller than two inches in diameter, which makes it ideal for use in narrow-gauge monitoring wells. The system's dual-function probe uses an optical prism to distinguish air from liquid and an electrical conductivity sensor to differentiate water from hydrocarbons.

Features:

FM approved instrinsically safe.

Measuring tape in engineering and metric units.

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications

Technical Specifications

AccuracyFluid depth to within 1/100' hydrocarbon layers to 1/200'
ApprovalsFactory Mutual approved for Class I Division 1 Group D hazardous locations
Power9V battery
DimensionsUS: 12 x 12 x 4 in. Metric: 305 x 305 x 102 mm
Manuals, Data Sheets & Software
=
