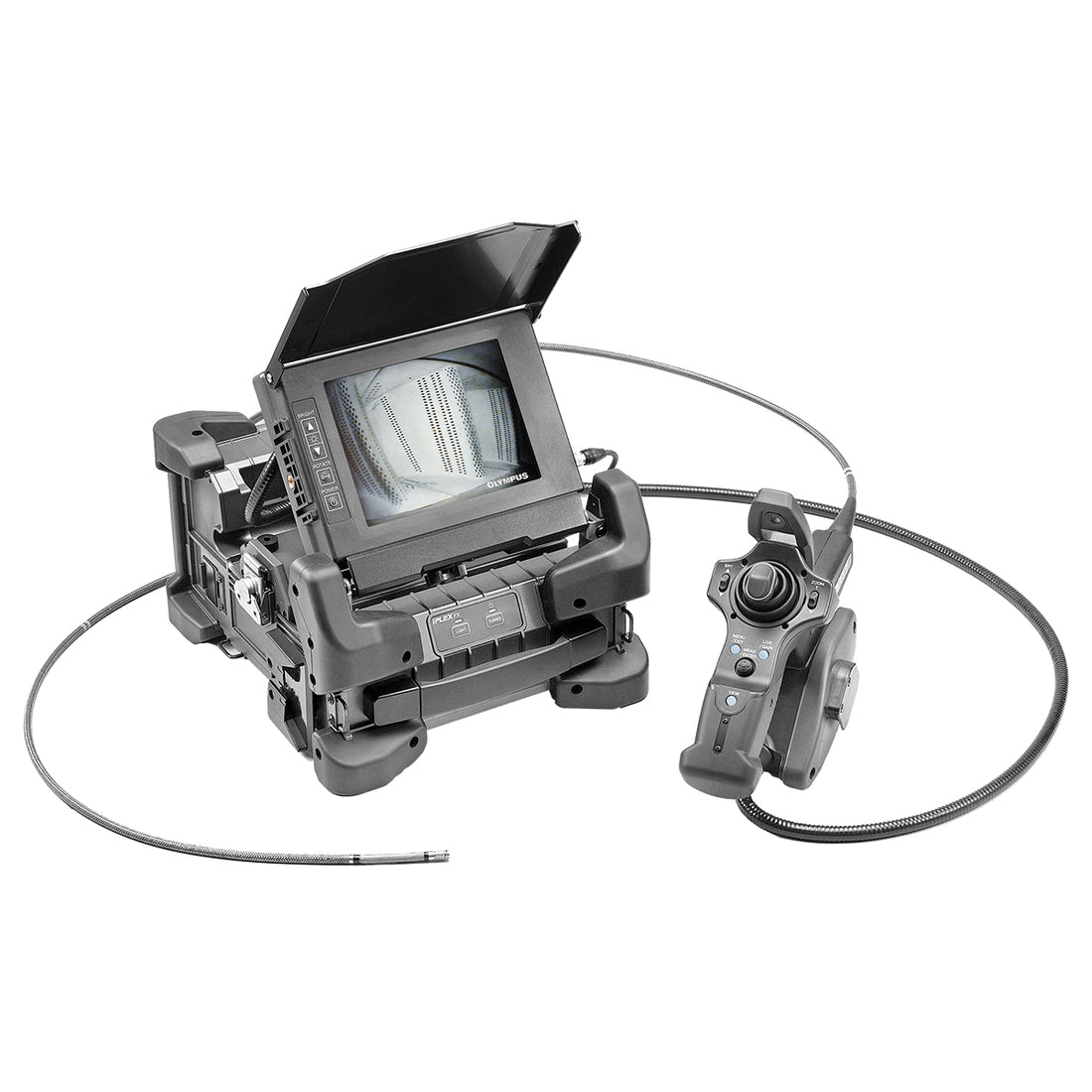

Olympus IPLEX FX Videoscope / Videoprobe - 4mm, 6mm x 2m, 3.5m, 7.5m, 12m
Olympus IMS

Olympus IPLEX FX Videoscope / Videoprobe - 4mm, 6mm x 2m, 3.5m, 7.5m, 12m

Pine Item #54214

Available to rent or hire from Pine. The latest generation of portable industrial inspection instrument, the Olympus Iplex FX, is now available to rent and boasts innovative features including a magnesium alloy case for increased shock resistance and heat dissipation and sealed construction to prevent dust and water ingress.

Completely portable making it an ideal hire solution, the Iplex FX is powered by a Lithium-Ion battery for 2.5 hours continuous operation and is capable of use in temperatures up to +100oC. With Stereo, 'Multi' measurement and Spot-ranging, the FX provides instant object measurements and tip to target distances.

Other features include automatic tip recognition making set-up quick and simple, an XGA resolution, 6.3' LCD monitor and a choice of recording both stills images or movie files direct to either the 1Gb internal memory, a removeable 1Gb Flash card or datastick via the USB port. Also known as Videoprobes, Boroscopes, Endoscope and Borescopes all available to rent or hire from Pine.

Features:

Choice of 4mm or 6mm dia. Probes

Swappable insertion probes

TrueFeelTM scope articulation

Temperature resistance (to +100oC)

2Gb data storage capacity

Lightweight shock resistant and splash proof construction

Applications:

Choice of 4mm or 6mm dia. Probes

Swappable insertion probes

TrueFeelTM scope articulation

Temperature resistance (to +100oC)

2Gb data storage capacity

Lightweight shock resistant and splash proof construction

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

Articulation Angle4 - way angle - UP/DOWN/RIGHT/LEFT/150o
Insertion TubeAvailable in 2m 3.5m & 7.5m
Video OutputS-Video Composite BNC (NTSC/PAL model specific)
Audio InputExternal microphone 3.5mm mono jack
Auxiliary ConnectorTwo-way communication connector for future interface development
USBOne USB connector for direct flash drive recording and PC communication
LCD6.3\" diagonal
Power Supply - Internal BatteryVoltage: 14.8V nominal 11.5V to 16.8V
Power Supply - AC PowerInput Voltage: 100V to 240V
Image Controls3x digital zoom
Adjustable Gain Control5 step adjustable gain control with exclusive WiDER brightness level balancing technology
Exposure ControlAdjustable CCD exposure time
Temperature Sensor2-stage indicator for high temperature warning
Recording MediaCompact Flash Card (1 GB standard)
Internal Memory1 GB standard
Scalar MeasurementDistance between two points based on a known measurement in the same image plane
Stereo MeasurementDistance; Point to Line; Depth; Area/Lines; Profile; Multi
Operating TemperatureIn air: -13° to 212° F (-25° to 100° C)
Operating Atmospheric PressureIn air: 1 atm (1013 hPa)
Relative Humidity15 to 90%
Liquid ResistanceOperable when exposed to machine oil light oil or 5% saline solution
Display Text OptionsSelectable date time 30-character title display and image setting display

Dimension

USMetric
Handheld Control Unit12.2 x 3.6 x 7.6 in311 mm x 93 mm x 192 mm
Base Unit - including battery pack9.8 x 6.3 x 11.2 in250 mm x 160 mm x 285 mm
Dimensions (shipping)24.6 x 11.9 x 19.3 in624 mm x 303 mm x 491 mm

Weight

USMetric
Handheld Control Unit1.7 lb750 g
Base Unit - including battery pack10.8 lb4.9 kg
Dimensions (shipping)22 lb 10 kg
