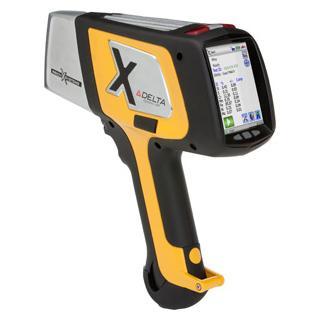

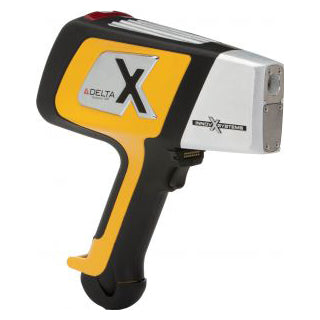

Olympus DELTA DS2000 XRF Handheld Metals Analyzer

Pine Item #55348

See and feel the DELTA difference. The analyzer is compact and robust from probe to trigger to display, with sophisticated XRF technology that's better, faster, and more responsive. From initial boot-up to the final result, the DELTA is the optimum solution for all your analytical needs. The DELTA line gives you the ultimate experience in field-portable handheld XRF analysis, providing fast measurements with accuracy, precision, detection limit, and light element measurement capabilities built into a compact single-chassis frame wrapped in robust industrial-grade body casing.

The DELTA is a reliable and rugged analyzer that maximizes both speed and accuracy. Other XRF systems have trade-offs. They may be able to identify alloys quickly, however inexperienced operators may not be able to determine whether an ID is incorrect, or whether longer testing is required. So how does the conscientious inspector maximize testing speed without increasing the risk of mistaken IDs or erroneous readings? Innov-X's SmartSort solution automates all these decisions, enabling even inexperienced operators to maximize both speed and inspection accuracy. This powerful feature yields optimized throughput and accuracy, making the DELTA an extremely productive XRF for alloy inspection.



Features:

4 W X-ray tube 200µA current (max) plus optimized beam settings

Tight geometry for exceptional LODs and high analysis throughout

Large-Area SDD option plus customized X-ray provides exceptional light element sensitivity

Patent-pending automatic barometric pressure correction adjusts calibration as needed

Lightning fast bootup and data acquisition: Faster testing more results

Floating Point Processor: Provides more calculations in less time and leverages more advanced calibration algorithms

Integrated Bluetooth for data input and output

Ergonomic rubberized handle for enhanced grip

Analysis indicator lights visible from 360°

Bright responsive color touch screen display

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

Excitation source:4W Au or Ta anode X-ray tube
Detector:Si-PIN Diode
Environmental temperature range:-10 ºC to 50 ºC (14 ºF to 122 ºF)
Analytical range:Alloy and Mining: Ti and higher; Soil: P and higher
Processing electronics:530 MHz CPU with integrated FPU with 128 MB RAM; Proprietary Olympus Digital Pulse Processor (DPP
Smart electronics:Accelerometer; Barometer for atmosphere pressure correction of light elements’ measurements
Power:Rechargeable Li-ion battery; Hot-swap maintains analyzer power during battery change
Display:32 bit Color QVGA resolution, Blanview transmissive backlit touchscreen; 57 × 73 mm (2.25 × 2.9 in.)
Data storage:1 GB microSD (stores ~75,000 readings)
Data transfer:USB, Bluetooth®
DimensionsUS: 3.25 lbs. Metric: 1.5 kg
