Innov-X 600 Alpha Series XRF Analyzer
Innovatum

Innov-X 600 Alpha Series XRF Analyzer

Pine Item #54308

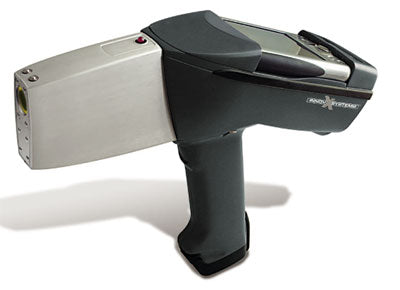

Capable of undertaking a variety of both industrial and environmental monitoring applications, the Innov-X Alpha PMI Analyzer is an X-Ray Fluorescence Analyzer (XRF) combined with a HP iPAQ mini PC.  Utilising a rugged X-Ray tube rather than radioactive isotopes, the Innov-X Alpha uses the iPAQ library to determine alloy chemistry and grade ID in metals, metal concentrations and type in soils as well as testing components for both RoHS and WEEE directives.

Providing instant, accurate readings, this hand-held analyzer reduces costly laboratory testing and allows quicker testing.

Features:

Analyze low alloy stainless nickel titanium cobalt copper-based alloys and more.

Confidently separate challenging alloys such as 304 & 321 P91 & 9 Cr Ti Grade 7 & CP Ti.

Designed for tests to 800?F.

Exceptional performance on 6061/6063 aluminum alloy seperations.

Measure Cr in carbon steel to 0.03% -- for evaluating flow accelerated corrosion (FAC).

Applications:

Analyze low alloy stainless nickel titanium cobalt copper-based alloys and more.

Confidently separate challenging alloys such as 304 & 321 P91 & 9 Cr Ti Grade 7 & CP Ti.

Designed for tests to 800?F.

Exceptional performance on 6061/6063 aluminum alloy seperations.

Measure Cr in carbon steel to 0.03% -- for evaluating flow accelerated corrosion (FAC).

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

Excitation SourceX-ray tube Ag or W anode 10-40 kV 10-50 µA up to 5 filter positions.
Smart BeamDelivers industry-leading detection limits on critical elements Cr V Ti.
DetectorSi PiN diode detector <230 eV FWHM at 5.95 keV Mn K-alpha line.
Number of ElementsStandard package includes 21 elements. Customer may specify 4 additonal or use multiple suites of 25 elements each.
OperationTrigger or Start/Stop Icon. One-touch trigger or \"deadman\" trigger option. Optional control from external PC.
Memory Data Storage128 Mb standard memory. 20000 test results with spectra upgrade to >100000 with optional 1 Gb flash card
Display ScreenColor high resolution touchscreen. Variable brightness provides easy veiwing in all ambient lighting conditions.
PowerLi-ion batteries rechargeable (charger included). Powers analyzer and iPAQ simultaneously. AC Adapter optional.

Dimension

USMetric

Weight

USMetric
Weight3.375 lbs 1.6 kg
