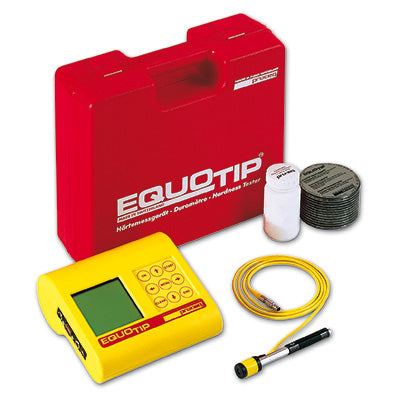

Proceq Equotip 2 Portable Hardness Tester
Proceq

Proceq Equotip 2 Portable Hardness Tester

Pine Item #54257

The Equotip 2 metal hardness tester is a light weight, yet powerful portable hardness tester for all metallic materials.   It measures the Leeb value (L) for materials, which is a ratio of the impact velocity to the rebound velocity.   Mobile and very accurate, it has a large measuring range - from soft to extremely hard. With measurements within seconds, the Equotip 2 can display readings in other hardness test ranges such as HL, HS, HV, HRB and HRC . Hardness measurements are carried out by a dynamic method, which allows testing on areas of difficult access.

Features:

Ability to freehand measurements on large parts

Rapidity and good reproducibility through accurate distance measurement

Very good selectivity through small penetration of a few µm

Simple convenient operating

Integrated conversions

Applications:

Ability to freehand measurements on large parts

Rapidity and good reproducibility through accurate distance measurement

Very good selectivity through small penetration of a few µm

Simple convenient operating

Integrated conversions

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

Maximum Hardness940 HV
Impact Energy11 Nm
Mass of Impact Body5.5g
Diameter Test Tip3m
Diameter Impact Device20mm
Length Impact Device150mm
Accuracy+ 4L ( + 0.5%) Or when converting to HBHV or HRC + 3% to + 15% Or when converting to shore hardness + 1.5% to 4.5%
Battery6 x 1.5 v LR6 giving 65 Hrs use
Operating Temperature0° C to + 50° C
Input for External Power9v D.C. at 0.2A
Data OutputRS232C on dB 9 pin

Dimension

USMetric
Dimensions6.9 x 7\" x 3.1\"\"175 x 180 x 80 mm

Weight

USMetric
Weight16.5lbs7.5kg
