Clean Air Trakker Water Fogger 2000

Pine Item #54340

Available to rent or hire from Pine the Clean Air Trakker produces a highly visible fog using only DI water and ultrasonic energy.  It is ideal for visualizing airflow patterns, verifying toxic fume containment, identifying vortices and flow disturbances, verifying pressure differentials between clean zones, and tracing migration patterns on walls and around furniture.

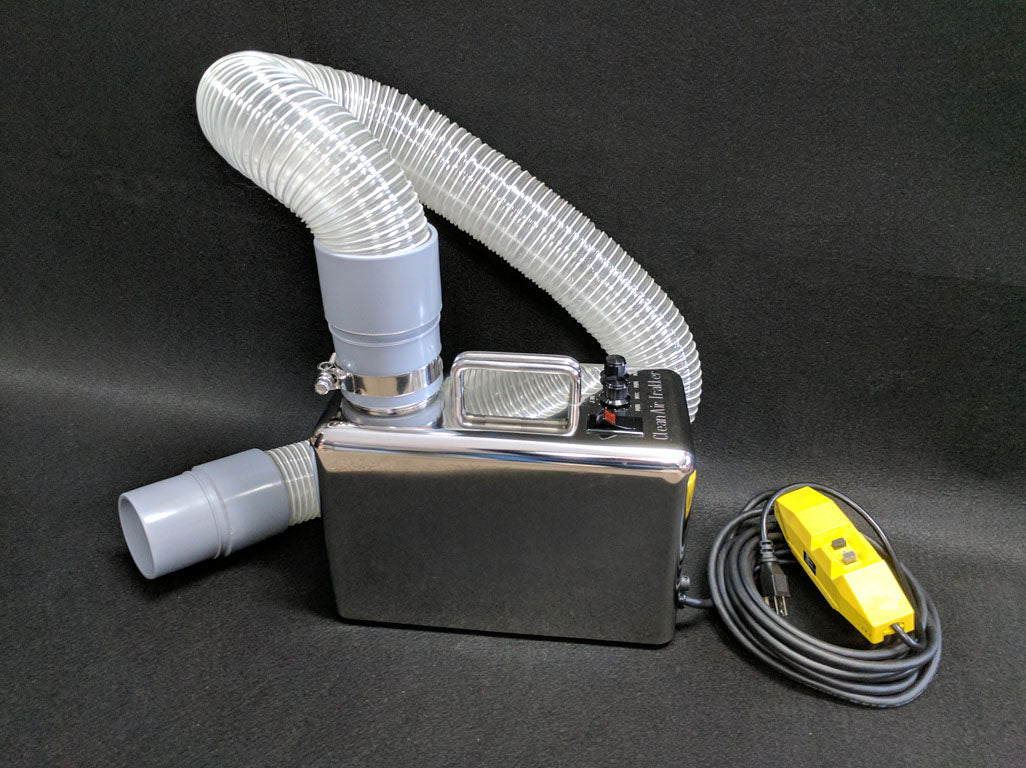

Just add deionized water and turn it on.  A non-contaminating fog generator is the recommended instrument for meeting the specifications of the International 300mm Initiative (l300l), Semi S2-98, Semi S6-93 and Semi E44-95.  The Clean Air Trakker delivers submicron-sized water particles at a speed and fog density that are user-adjustable.  It comes in a wheeled cleanroom case with all stainless hardware and pull-out handle.  The unit is cushioned in foam and includes a six-foot flexible hose for fog dispersion.

    Features:

    Video and track cleanroom airflow patterns

    Visually verify toxic fume containment

    Identify vortices and flow disturbances in your environment

    Trace migration paths

    Verify pressure differentials

    See the motion of people, heat and robotic machinery

    Document dynamic smoke studies

    Quantity must be 1 or more
    Equipment available for both rental and purchase
    Request a Quote

    Specifications
    Technical Specifications
    Material316L electro-polished stainless stell
    Continuous Use1.5 hours at max output
    Capacity2.0 liters DI water
    Power110V
    Carrying Case Dimensions17 x 18 x 10 in. (432 x 457 x 254 mm)
    Carrying Case Weight34 lbs (15.4 kg)
    Unit Dimensions 12 x 6 x 9 in. (305 x 152 x 229 mm)
    Unit Weight12 lbs (5.4 kg)
