CEL Acoustic Calibrator 350
Casella CEL

CEL Acoustic Calibrator 350

Pine Item #51421

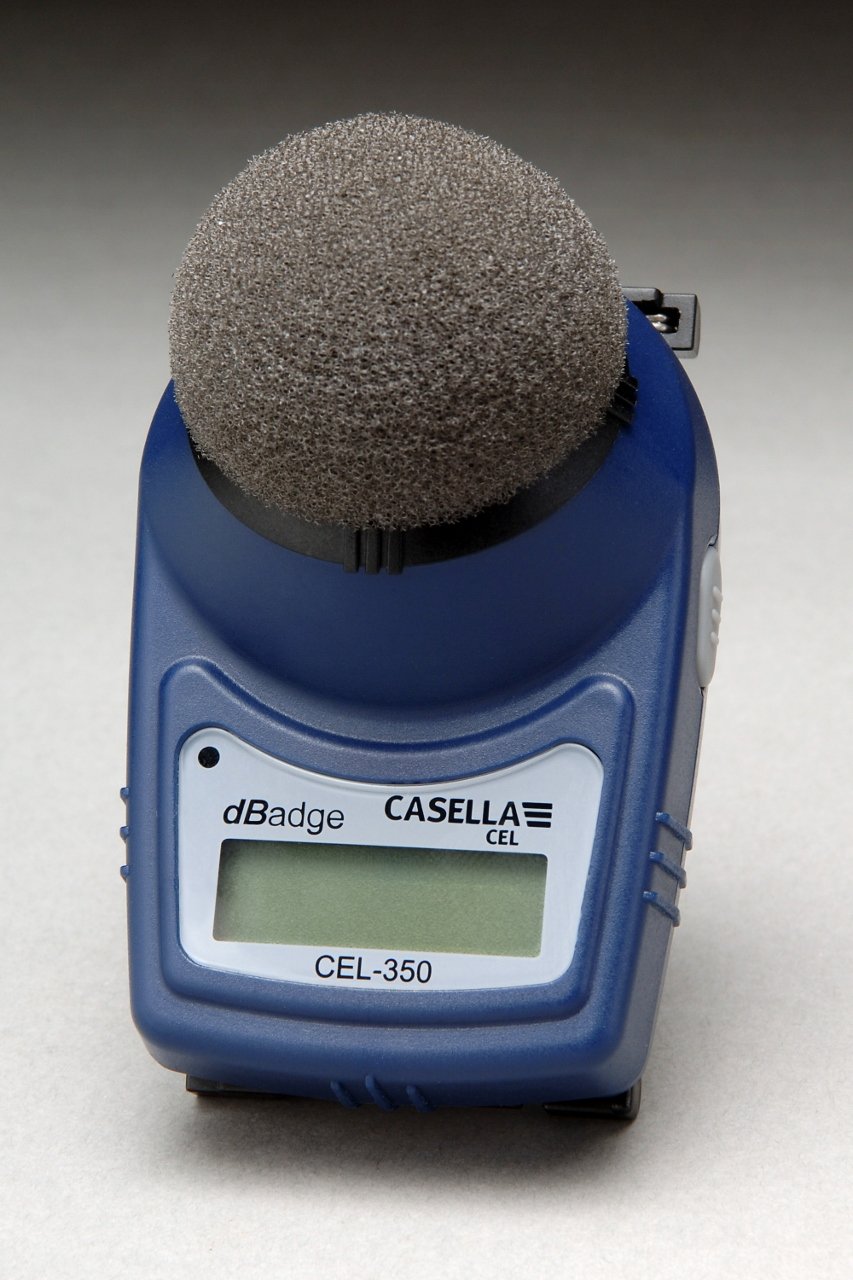

The CEL-350 dBadge Series is the first compact noise badge product to be designed with a display. This internal display makes it easy to perform calibration, provides status information and shows key measured data. The dBadge has a unique ‘fuel gauge’ to display memory and battery status, ensuring the exact remaining battery and memory capacity can be viewed on the display. Also a unique feature of the dBadge is the alarm function. An ultra-bright LED on the dBadge gives a visual indication of when exposure action levels have been exceeded by flashing at different rates. These action levels can be configured via the Insight software and used to instantly see if noise control or hearing protection measures are needed. The alarm function can be switched on or off via the dBadge keys. In addition to noise exposure parameters, the time history of the noise is logged in 1 minute values of both the average noise level and the peak value for subsequent analysis of how the noise exposure has occurred. This data can be viewed and analysed via Insight software.

Features:

Measures and logs all workplace noise parameters

28 hour battery life, fully charges in 90 minutes

Simple auto-calibration function

Run duration timers

Simultaneous ‘C’ and ‘A’ weighted measurements

Large memory capacity 180 hours

Compact, rugged (rubber overmoulded) design weighs only 71g

No cables to damage or get in the way

Applications:

Complete shift exposure measurements

Task based measurements

Measurements according to ISO9612: 2009

Selection of hearing protection

Measuring personal noise exposure

Ensuring compliance with Workplace Noise Regulations

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

Acoustic accuracyANSI S1.25, IEC61252 2002 Personal sound exposure meters
Dynamic range (dB)65 to 140
Frequency weightingsA for rms values plus Z and C for peak measurements
Time weightingsSlow for Q=5 data plus non for Q=3 data as required for standards
Exchange rate (Q dB)5 and 3 simultaneously
Threshold level (dB)Any levels from 70 to 90 in 1 dB steps
Criterion level (dB)Any level between 70 and 90 in 1 dB steps
Microphone capsuleRemovable ½” type 2 device can be calibrated with any standard acoustic calibrator using ½” diameter cavity
Calibration methodAutomatic recognition and calibration to user set dB level
Display screen96 x 26 pixel graphics LCD with 2 line text messages
Alarm warning indicatorsRed and blue LED’s showing level noise exceedances during run
Indicators2 stage hi intensity LED’s for memory, battery or noise warnings
User controls2 push buttons for On/Off and OK/Accept
Case moldingHigh impact ABS plastic molding
DimensionsUS: 2.8 x 1.7 x 2.0 in. Metric: 72 x 42 x 52 mm
WeightUS: 2.4 oz. Metric: 68 g
