CEL Acoustic Calibrator 110
Casella CEL

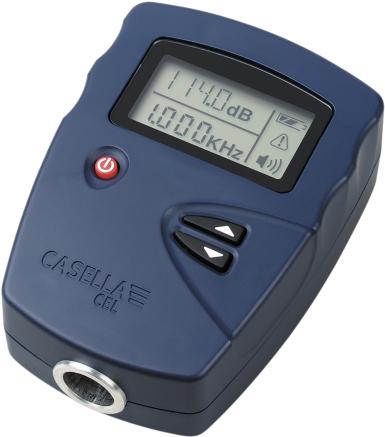

CEL Acoustic Calibrator 110

Pine Item #61171

The CEL-110 units are compact and ergonomically designed with simplicity and ease of use being the main priority. A simple keypad is provided for logical control of the unit’s functions. Two versions are available fulfilling the accuracy requirements of ANSI and IEC in the new Class 1 and Class 2 categories. A feedback microphone incorporated into the design ensures a stable tone for precise setting up of sound level meters and noise dosimeters. The standard display provides clear and concise status information at all times.

Features:

Complies with ANSI S1.40 – 1984 (R1997) and IEC 60942: 2003

Simple keypad operation

Automatic power off to conserve battery life

Powered from a single 9V radio battery

Frequency of 1 kHz

Applications:

Field Calibrations

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

Calibration sound pressure level (over environmental range):114.0dB +/-0.4dB and 94.0dB +/-0.4dB
Calibration Frequency1kHz +/-1Hz
Harmonic Distortion: Less than 1.0%
Battery1 x 9V (PP3, IEC 6F22)
Battery life:A typical operational life of 3 years
DimensionsUS: 2.8 x 1.6 x 4.0 in. Metric: 71 x 40 x 100 mm
WeightUS: 0.37 lb. Metric: 170g
