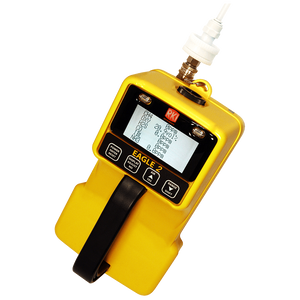

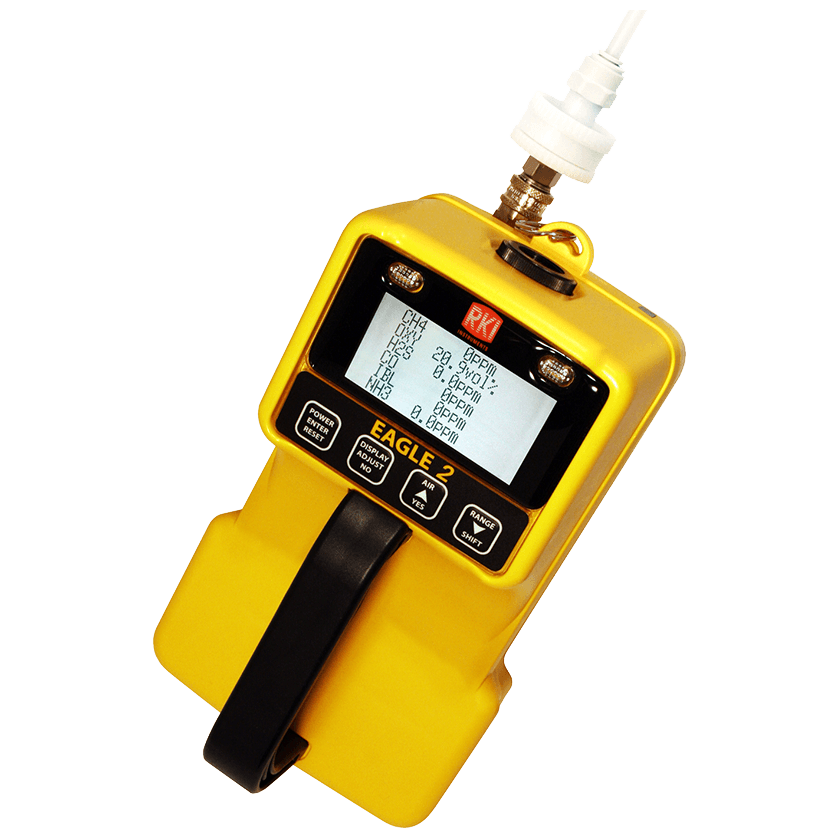

RKI Eagle 2 (6-Gas Sample Drawing Monitor)
RKI

RKI Eagle 2 (6-Gas Sample Drawing Monitor)

Pine Item #51103

RKI is proud to offer the next generation of our popular EAGLE portable gas detector. Equipped with features that are not available on competitive units, the EAGLE 2 is a powerful instrument that does more than just offer the standard confined space protection for LEL, O2, H2S and CO.

The EAGLE 2 available features include a PID sensor for detecting high or low ppm levels (0-50 & 0-2,000) of VOC gases; % volume capability for CH4 and H2 using a TC (thermal conductivity) sensor; ppm or LEL hydrocarbon detection at the push of a button; infrared sensors for CO2 (ppm or % volume), methane or hydrocarbons in LEL and % volume ranges; Optional LEL / ppm H2 specific sensor, methane elimination feature for environmental applications; and a variety of super toxic gases.

Features:

Monitor up to 6 different gases

PPM % LEL or % Vol. auto-ranging combustible detection

H2 Specific LEL/PPM detection

Multilingual (5 languages)

Low flow pump shut off and alarm

Methane elimination for environmental use

Alkaline 16 hours or NiMH 18 hours capability

Password protection

Datalogging standard

Auto calibration / single gas calibration

Internal hydrophobic dust filter

External probe with hydrophobic filter

Ergonomic RFI / EMI / chemical / weather resistant enclosure

Intrinsically safe design CSA approval

Applications:

Confined Space Entry

Leak Investigation

Line Purge Testing

VOC Monitoring

Transformer Testing

Landfill Monitoring

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications

Technical Specifications

Language:Readout can display in 5 languages (English, French, German, Italian or Spanish)
Alarms:2 Alarms per channel plus TWA and STEL alarms for toxics. The two alarms are fully adjustable for levels latching or self reset and sile
Alarm Method:Buzzer 95 dB at 30 cm four high intensity LEDs.
Controls:4 External glove friendly push buttons for operation demand zero and autocalibration.
Continuous Operation:At 70°F 16 hours using alkaline batteries or 18 hours using Ni-MH.
Power Source:4 Alkaline or Ni-MH size C batteries (Charger has alkaline recognition to prevent battery damage if charging is attempted with alkalines).
Operating Temp. & Humidity:-20°C to 50°C (-4°F to 122°F) 0 to 95% RH non-condensing.
Response Time:30 Seconds to 90% (for most gases) using standard 5 ft hose.
Safety Rating:Intrinsically Safe Class I Groups A B C D. Approvals: CSA / CE
Standard Accessories:Shoulder strap alkaline batteries hydrophobic probe and 5 foot hose internal hydrophobic filter
Optional Accessories:Two year material and workmanship one year for PID sensor
Warranty:9.5” x 5.25” x 5.875” Metric: 24.1 x 13.3 x 15 cm
